Product Specifications

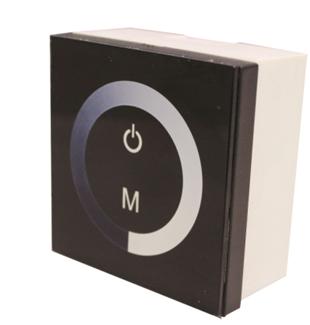

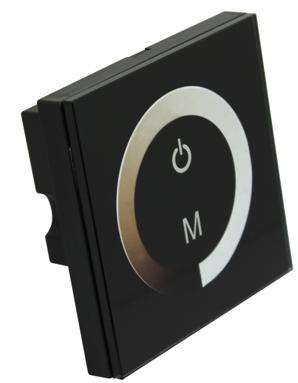

NAME: Touch Panel Dimmer

MODEL: TOUCH-MB01

Product Description:

Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of constant voltage led light. Such as LED point source, flexible led strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.

Technical Parameters

● working temperature: -20-60 ℃

   ● supply voltage: DC12~24V

● output: 1 channel

● connection mode: common anode

● external dimension: L86 Χ W86 Χ H36 mm

● packing size: L115 Χ W110 Χ H56 mm

● net weight: 126g

● gross weight: 185g

● static power consumption: <1W

● output current: <4A/CH

● output power: 12V<144W, 24V<288W

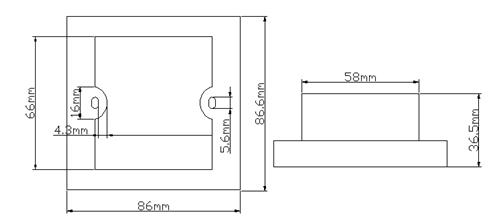

External Dimension

Controller instruction:

1. Touch panel has two buttons and a pulley key, the functions are as follows:

you could turn on/off controller at any state;

            : the key is used for choosing the brightness. You can choose different brightness. total 10

                kinds of change patterns.

 Pulley touch button, promise brightness selection key, up to 64 touch points.
