Product Specifications

Model Number：TOUCH-MB07

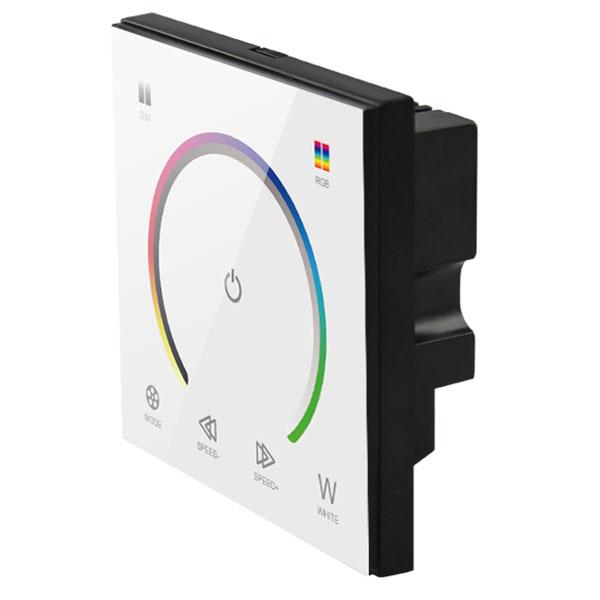

Product Name：RGB Touch Panel LED Controller

Product Description:

Touch panel dimmer controller is a new high-end controller which newly developed by our company. It adopts glass panel design with a beautiful and fashionable appearance. It adopts high precision capacitance touch control chip to increase the touch sensitivity and reduces mistake trigger. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing, strobe flash and other effects of change.

Technical Parameters:

  ● Working Temperature ：-20-60℃

  ● Supply Voltage：DC12~24V

 ● Output：3 Channels

  ● Connection Mode：Common Anode

 ● External Dimension：L86*W86*H36 mm

● Packing Size：L115*W110*H56 mm

● Net Weight：128g

● Gross Weight：187g

● Static Power Consumption：<1W

● Output Current：<4A(each channel)

● Outout Power：12V:<144W,  24V:<288W

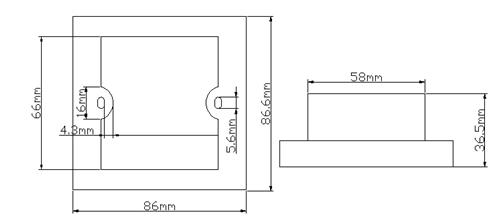

External Dimension

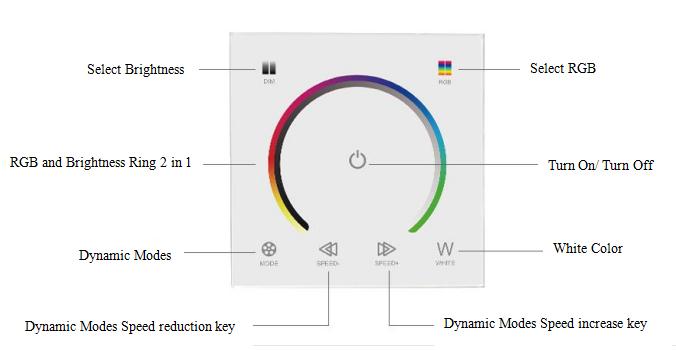

Direction for Use:

3、standard change is shown in the below table:

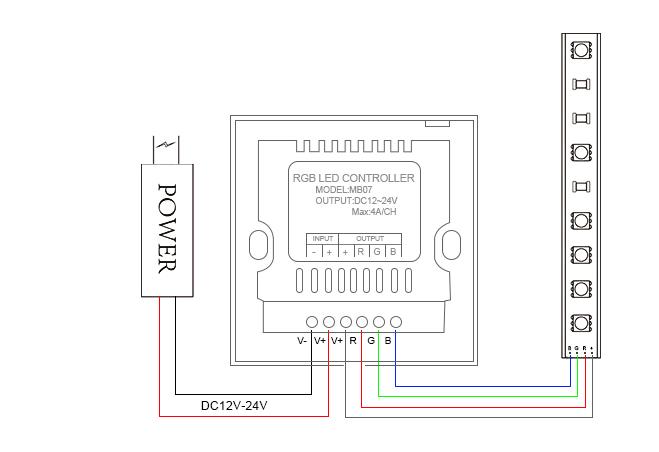

Typical Application:

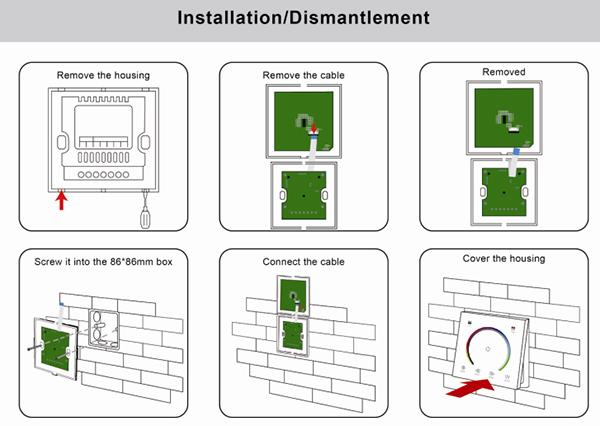

Installation Method:

Cautions:

1、This products Input voltage is DC12-24V,other input voltage are not allowed.

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3、Overload are prohibited.
