Product Specifications

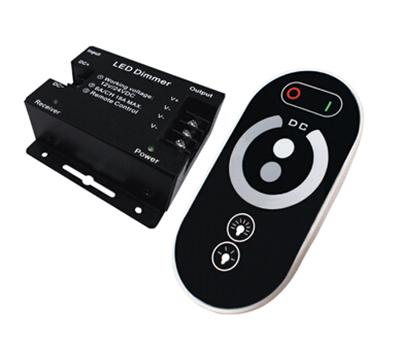

Model：RFTC-01
Name：Rf Touch Remote Single Color Controller
Introduction:
This Rf Touch Remote single Color dimmer is one of a newly design LED Touch remote controller of Our factory.
Using the latest capacitance touch technology and unique appearance design，Looks Simple, intuitive ,it realize of
the effect of remote dimming control.This controller provide three channels single color output in parallel , means
these three channels can be adjusted at the same time. This controller is integrated with the advantage of easy
connection, stable Rf transmission just with little Interference, and long lifespan.This controller is with short circuit
protection function,when meet short circuit, its green indicating light will be twinkling in a fixed frequency to
indicate the user. what's more, Its with automatically restore function after short circuit protection,this humanized
design can make the user experience another different sense
Technical parameters:
Controller：
● Working temperature：-20℃~+60℃
● Supply Voltage：DC5V, 12V, 24V available（Please specify the voltage when place order）
● Output：3 single color channels N-MOS Drain open output in parallel
● Connection mode：common anode
● controller dimension：L83×W79×H33 mm
● Package size：L205×W134×H47mm
● Net Weight：227g
● Gross Weight：379g
● Static power consumption：<1W
● Output current：<18A(each channel)
● Output power：5V:<90W, 12V:<216W, 24V:<432W
Romoter
● Working temperature：-30℃~+60℃
● Power supply mode：3pcs NO.7 Battery
● Supply voltage：3V
● Static power consumption：<0.09mW
● Remote-controlled distance：>20M

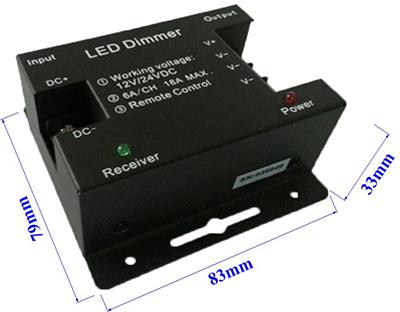

External dimension:
（Controller）
(Remoter)

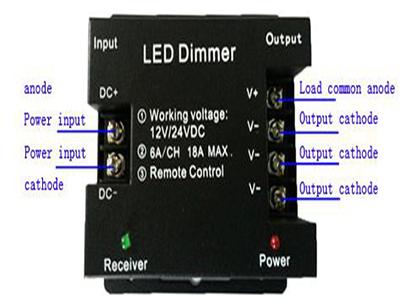

Connection Instruction:
DC+： For power input +（power supply voltage DC12v-24v）
DC-： For power input -
V+： For Load Common anode
V-： Output cathode, three channel in parallel
Power： Red indicating light is for power light，when the power on it will be turn on.
Receiver： Green indicating light, normally it will be in the state of OFF,it will be twinkle
when received Signal From the remote.When the controller output meets short circuit,the green indicating light will
be twinkle in a Fixed frequency to indicate the user.
main characteristic:
① Novel,fashionable,unique,noble appearance ,High sensitivity with good feeling.
② The touching ring is sensitive, the color brightness is Very intuitive appear in the touch ring, user can choose
the color brightness they prefer easily. Beside, this remote can be touch single point or to touch continually to
realize choosing the color temperature.
③ Low power consumption, long lifespan, can be touch infinite times , overcome the shortcomings of traditional
key short lifespan.
④ With auto Resting function,it will be turn into Resting state after 20 seconds with touching the remote
control,this function can Realize saving electricity and prolong the battery lifespan.
⑤ With short circuit automatic detection and protection function, it will automatically shut down output when
short-circuit occurred, and lights flashing.Automatic recovery after 10 s output, or the user can re-install the
electricity to recover the output .
⑥ Stable remote,long remote distance.

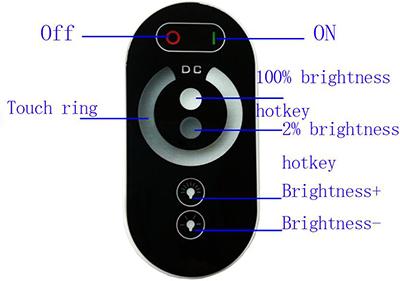

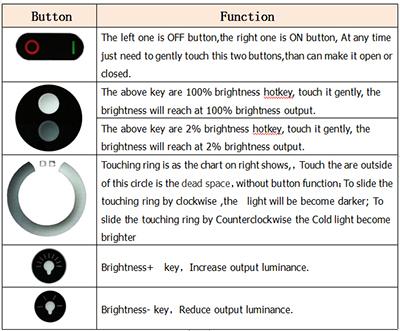

Remoter Function instruction

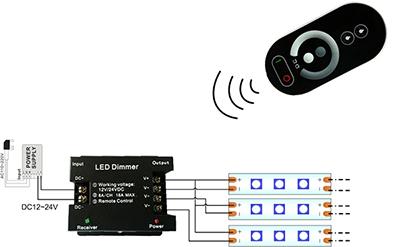

Typical Applications:
Caution :
1、Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
2、Lead wire should be connected correctly according to grade that connecting diagram offers.
3、This product can not be overloaded.
