Product Specifications

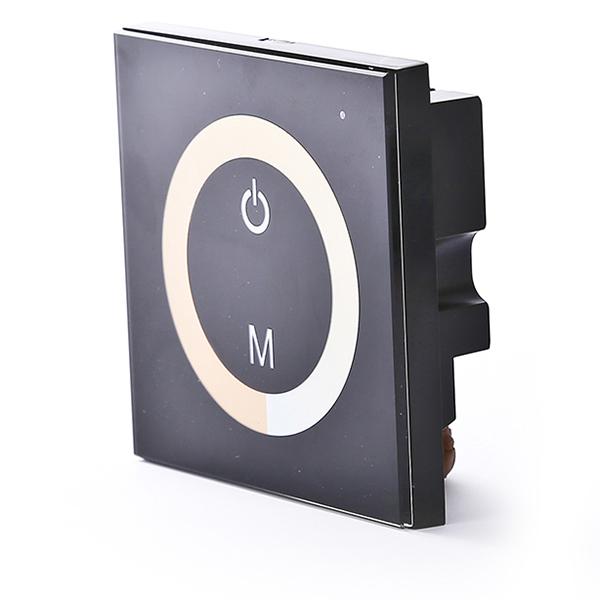

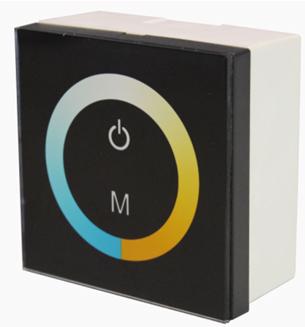

                                                                                                                                                                                               Products name: Touch Panel Color-temperature Controller

Model number: TOUCH-MB02

Product Description:

This Touch panel Color-temperature controller is a new high-end controller newly designed by our factory. The glass panel design, makes the appearance more beautiful and fashionable. It adopts high precision capacitance touch control chip, increases the touch sensitivity, and can reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light etc., it has many advantages such as convenient to connect, easy to use ,etc. It can realize cold,white warm white,pure white light Color-temperature and other effects of lighting change.

Technical Parameters:

● working temperature: -20-60 ℃

● supply voltage: DC12-24

● output: 2 channels

● connection mode: common anode

● external dimension: L86 Χ W86Χ H36mm

● packing size: L115 Χ W110 Χ H56 mm

● net weight: 130g

● gross weight: 187g

● static power consumption: <1W

● output current: <4A( each channel )

● output power: 12V<96W,24V<192W

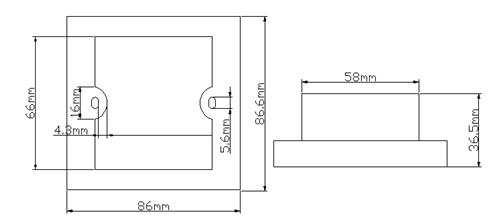

External Dimension:

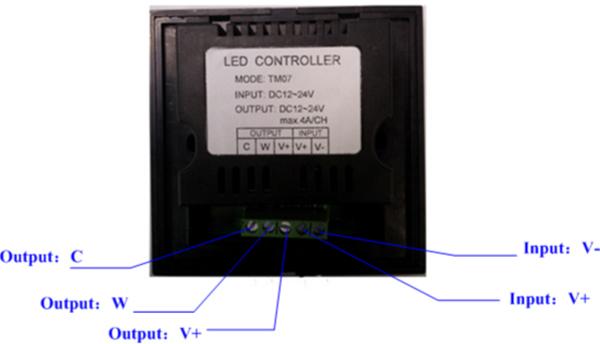

Interface Specifications:

Direction for use:

1、There are two keys on the controller panel, the functions are as follows

：you could turn on/off controller at any state;

：the color change button,there are 11 kinds of change mode optional,

:Multicolor pulley touch key, color mode selection key, up to 64 touch points.

                      The button has two functions:

                ①Pulley color selection key, so when the current control mode is M key mode

(color), if want to realize pulley static color, you can press this key.

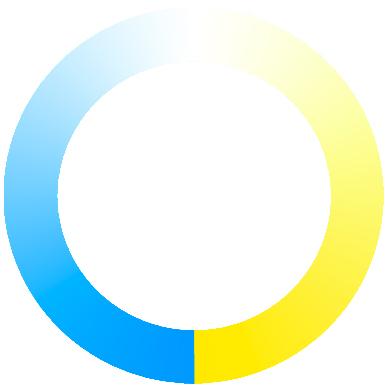

                ②Pulley color switch key, can change from 64 kinds of colors (as the

                      pulley shown)

2、When touch the button and the ring ,the indictor light will be flash each time.

       3、standard change is shown in the below table:

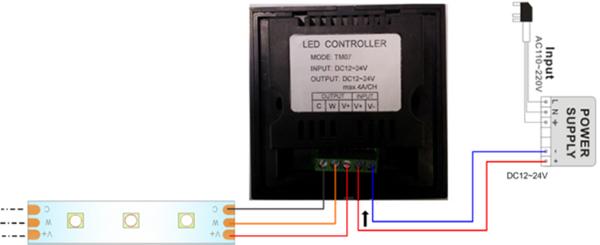

   Typical Applications:

Installation Method:

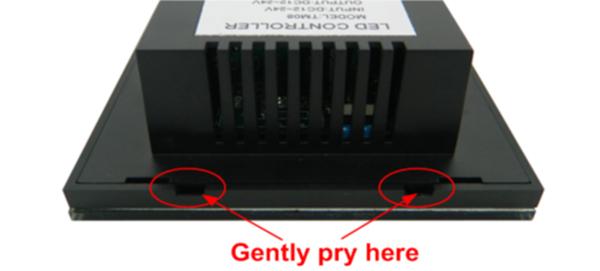

① gently pry gaps in touch panel with a screwdriver, and then you can slowly remove the panel, as shown below;

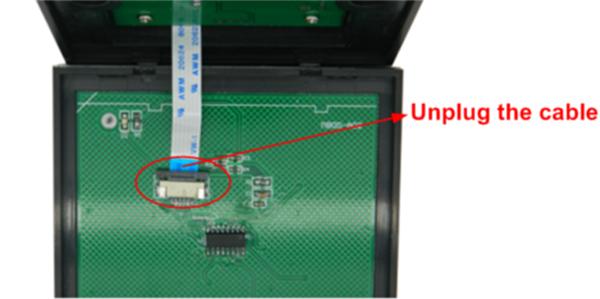

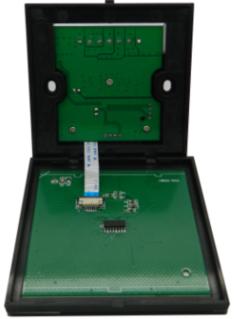

②  remove the cable. Pull the locking of the terminal transposon, and then you can slowly remove the cable, as shown below:

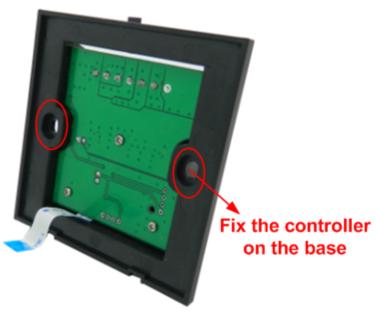

③ Fix the base of controller in the 86×86 installation box (customers need to buy the installation box by themselves) on the wall with screws.

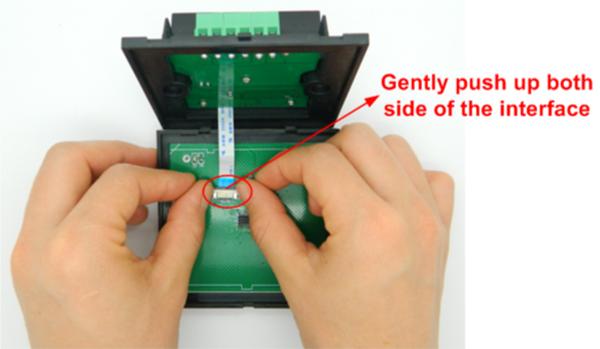

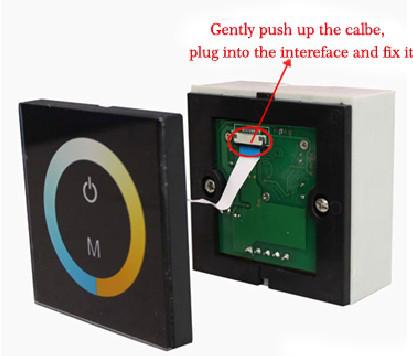

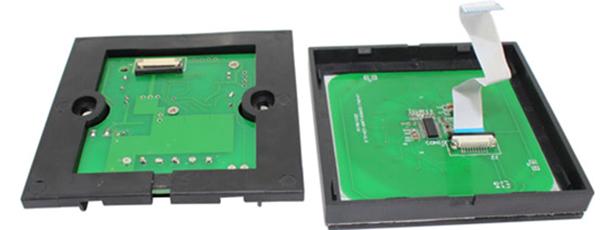

④ use your hand gently push up the cable seat lock according to step 2, plug the cable into cable seat, press the lock, and mount the cable of panel on the base, as shown below:

 ⑤ installation is completed, as shown below:

Cautions:

2、This products Input voltage is DC12-24V,other input voltage are not allowed.

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3、Overload are prohibited.
