Product Specifications

Product name：Rf touch remote control RGB controller

Item Model：RFTC-03

Introduction:

      This RF touch remote control RGB controller adopted the advanced touch technology, Mainly used to control all

kinds of constant volage led products, such as LED source, flexible strip, wall washer, glass curtain wall light and so on.

 User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according

 to their preference .This controller is with power off memory function, next time to used it, will start with the model it

 save. Its built-in 7 kinds of static color, jump, fade, strobe,flow, automatic cycle and others effect. Agile wiring, easy

 connection and simple to used is the representative advantages of this controller.

Besides,This controller is with short circuit protection function,when meet short circuit, its green indicating light will be

twinkling in a fixed frequency to indicate the user.what's more,Its with automatically restore function after short circuit

 protection,this personalized design can make the user experience another different sense.

main characteristic:

① Novel,fashionable,unique,noble appearance ,High sensitivity with good feeling.

② The touching ring is sensitive, the RGB color wheel is Very intuitive appear in the touch ring,user can choose the

color they prefer easily.Beside, this remote can be touch single point or to touch continually to  realize choosing the color

 .

③ Low power consumption, long lifespan, can be touch infinite times , overcome the shortcomings of traditional key

 short lifespan.

④ With auto Resting function,it will be turn into Resting state after 20 seconds with touching the remote control,this

function can Realize saving electricity and prolong the battery lifespan.

⑤ With auto Resting function,it will be turn into Resting state after 20 seconds with touching the remote control,this

function can Realize saving electricity and prolong the battery lifespan.

⑥ Stable remote,long remote distance.

Technical parameters:

     Working temperature：-30℃~+60℃

     Supply Voltage：DC5V/DC 12V-24V,

     Output：3 channels N-MOS Drain open output

Connection mode：common anode

Static power consumption：<0.5W

Output current： 6A*3Ch=18A 6A(Each channel)

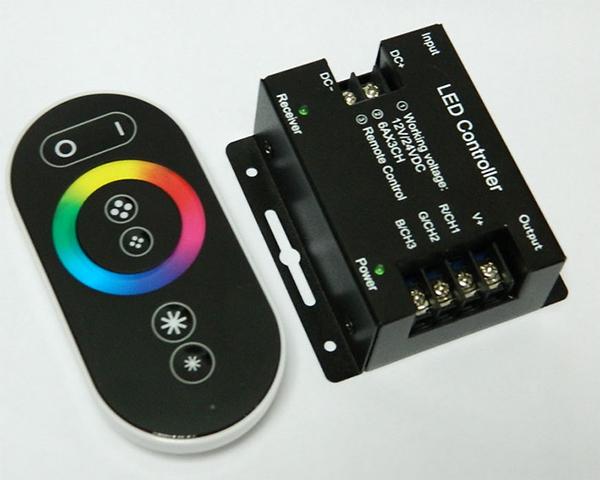

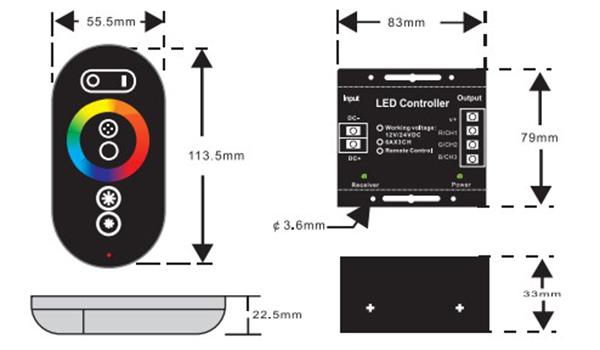

controller dimension：：L83 Χ W79 Χ H33 mm

Package size：L205ΧW135ΧH45mm

Net Weight：168g

     Working temperature：-30℃~+60℃

     Power supply mode：2pcs NO.7 Battery

Supply voltage：3V

Static power consumption：<0.09mW

     Static current：10uA

     Operating current：15mA

     Remote-controlled distance：>20M

     Stand-by time：6 months

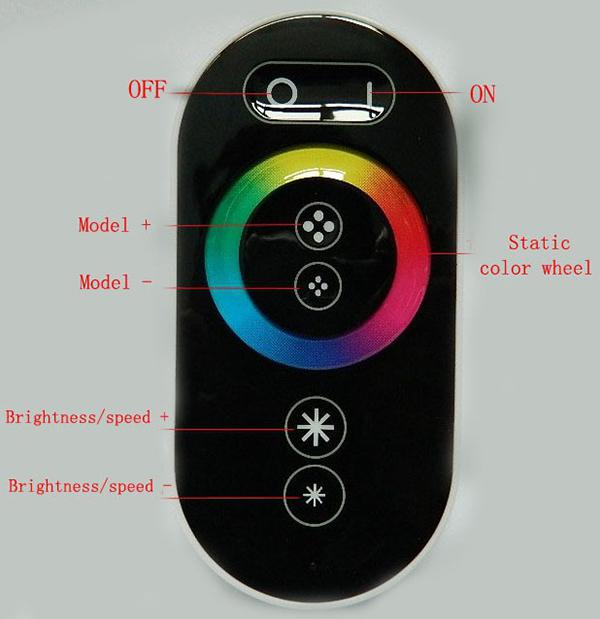

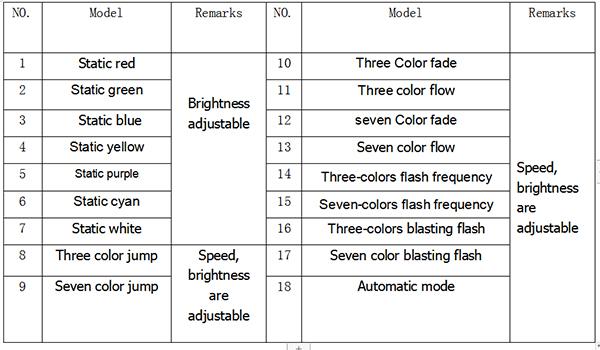

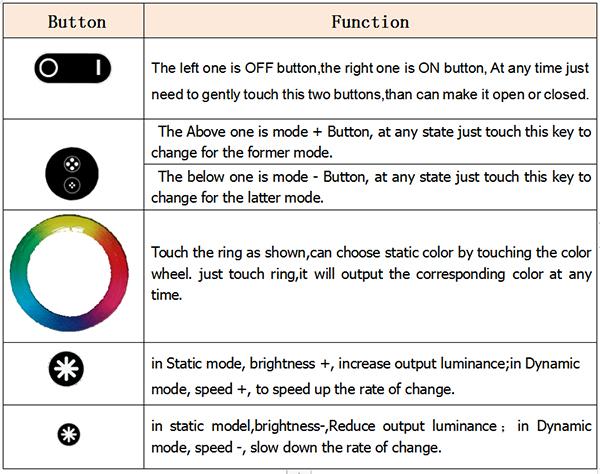

changing models are as below:

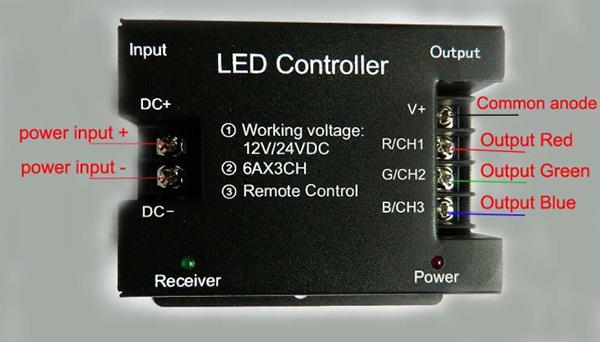

Connection Instruction:

DC+： For power input +（power supply voltage12v-24v）

DC-：   For power input -

V+：      For Load Common anode

R/CH1： Load output Red channel

G/CH2： Load output Green channel

B/CH3： Load output Blue channel

Power：   Red indicating light is for power light，when the power on it will be turn on.

Receiver： Green indicating light, normally it will be in the state of OFF,it will be twinkle

when received Signal From the remote.When the controller output meets short circuit,the green indicating light will be

twinkle in a Fixed frequency to indicate the user.

Notes:

1. The use of power and load voltage, current, power must be consistent with the product.

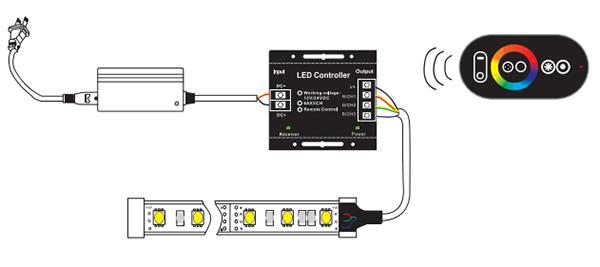

2. Please make the connection like the diagram above（to connect the load wire first, than to connect with the

power），In the process of operation please avoid short circuit.

3. This product warranty is 24 month，But not including the damage by people and other reason caused by over load

working.
