Model NO.：AMF-MINI

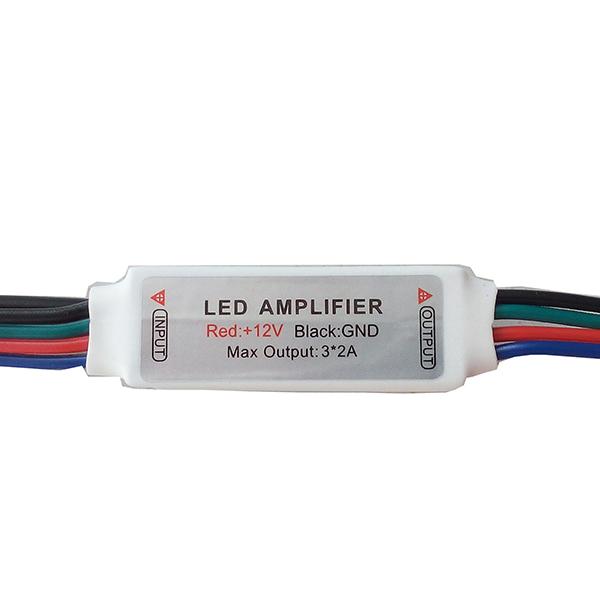

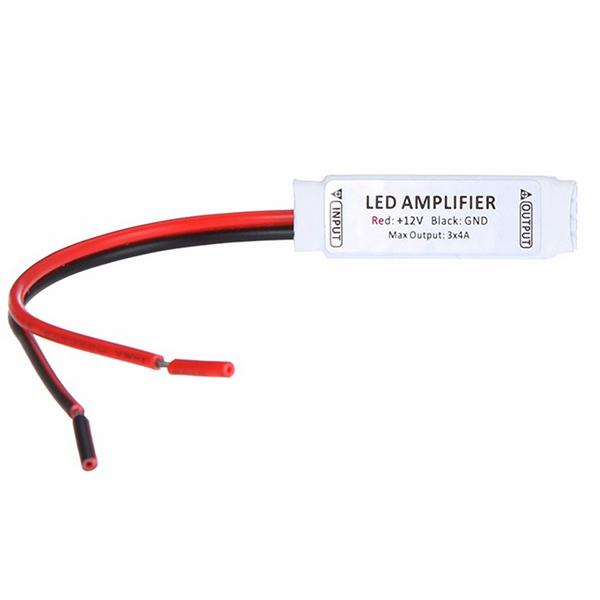

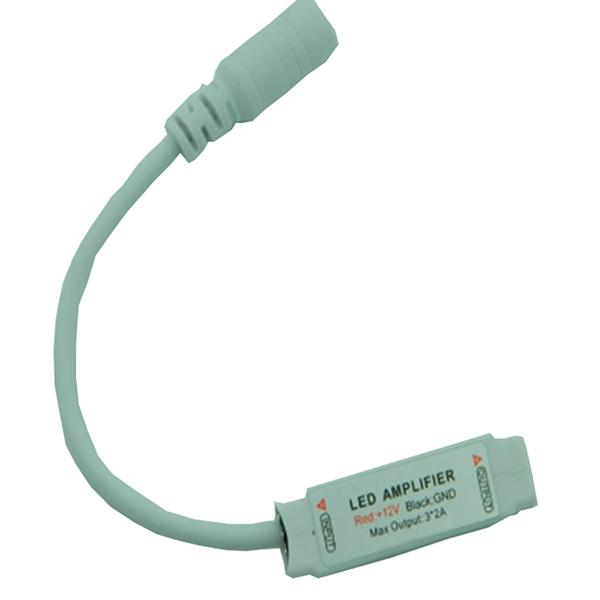

Product’s Name：Mini RGB Amplifier

Product Description:

This mini RGB amplifier are suitable for all kinds of constant voltage led controller. it can enlarge the led controller single through the RGB to receive the PWM(pulse width modulation),and output the single to the load ,then it can make the same  effect with the controller.when add each additional amplifier, can connect and controlled twice more LED lights.theoretically , one controller can connector with thousands of mini RGB amplifier, and can make the same effect.

Technical Parameters:

   ● Working temperature：-20-60℃

   ● Input voltage：DC12V

   ● Output：3 circuit

   ● Connection mode：Common anode

● controller size：L40.0×W12.0×H5mm

● Net weight：11g

● Static power consumption：<0.5W

● Output current：<2A(each circuit)

● Output power： 12V < 72W

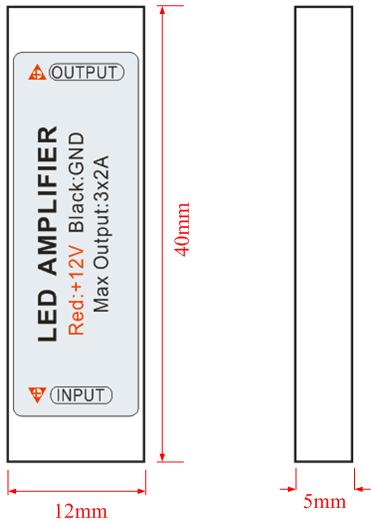

External dimension:

Connection description:

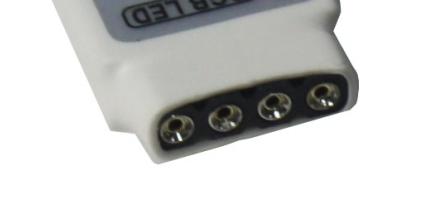

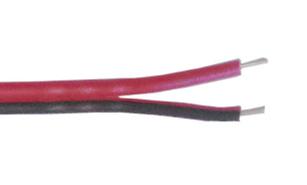

Power input interface:Standard red and black wire         Signal output port:2.54mm female 4 pins

    (core wire 1.0 mm, length:120 mm )

Typical Applications:

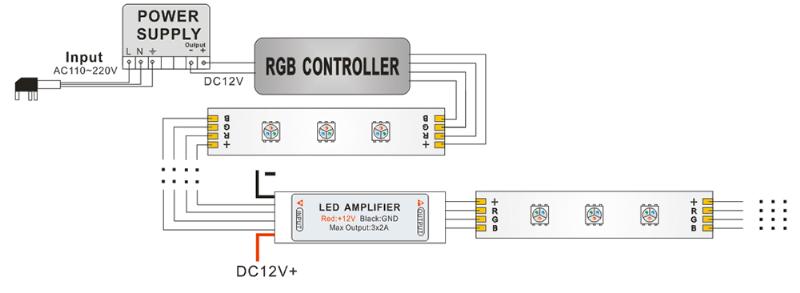

Connect the input and output wire in sequence according to the specification one the label of the amplifier, make sure that no short circuit phenomenon,then connect the amplifier to the DC12V power supply , and used with the led light , the wiring diagram are as follows:

cautions

1、This products Input voltage is DC12V,other input voltage are not allowed.

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers

3、Overload are prohibited.
