Model number：MINI-03 BL

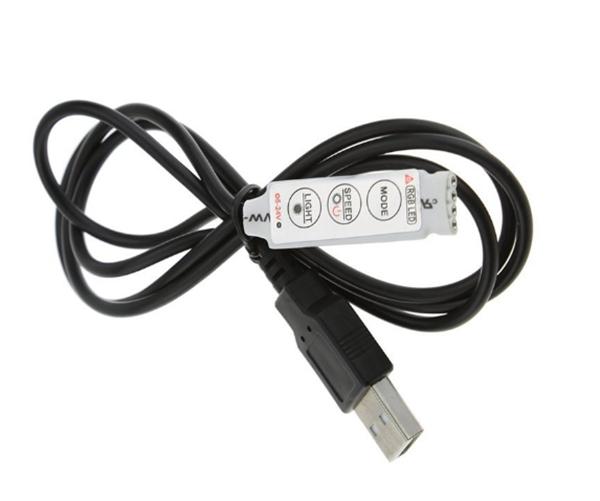

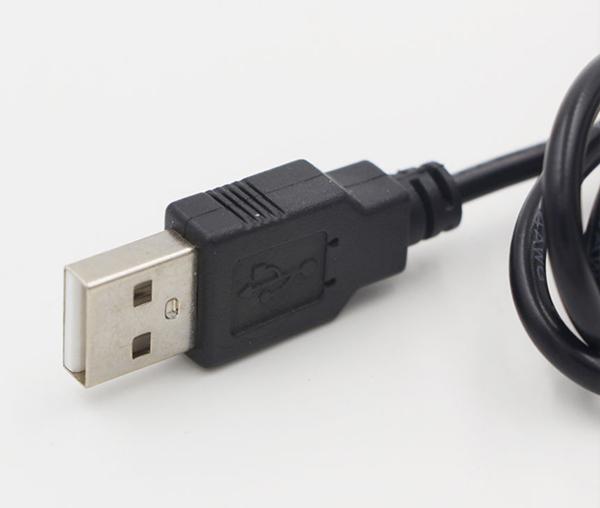

Products name：Mini 3 keys RGB led controller
Product Description:
Mini 3 keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What’s more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.
Technical Parameters:
● Working temperature：-20-60℃
● Input voltage：DC5-24V
● Output：3 circuit
● Connection mode：Common anode
● controller size：L40.0×W12.0×H5mm
● Net weight：11g
● Gross weight：15g
● Static power consumption：<0.5W
● Output current：<2A*3A(each circuit)
● Output power： 12V < 72W

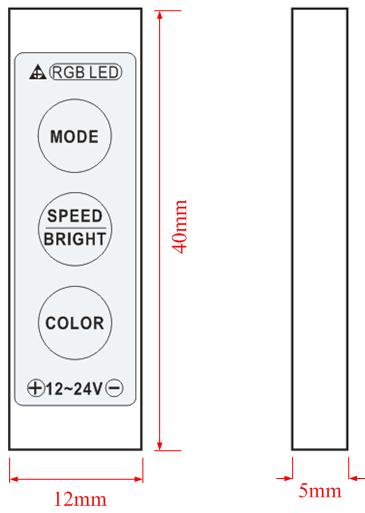

External dimension:

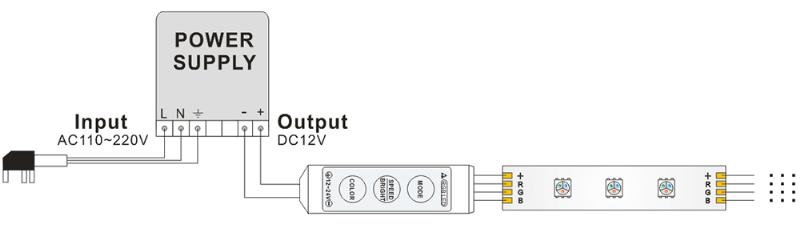

Connection description:
Direction for use:

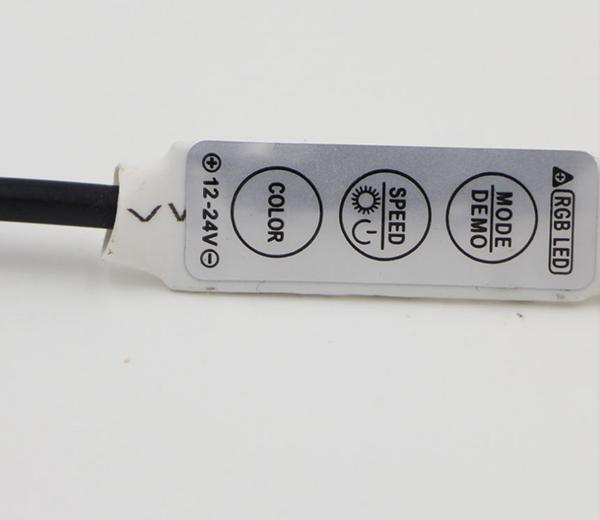

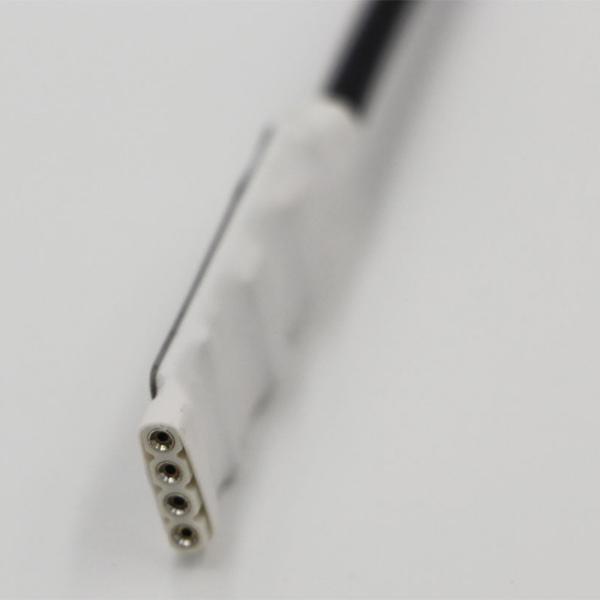

This controller wiring sequencing is + R G B , if connected with other wiring sequencing led strips , then the it will appear the same wiring sequencing with the LED strip.Power the controller , it will start with the same model as last time before cut off the power, there are three keys on the controller, their functions are as below:
Mode Key：Press fist time to switch to the dynamic models,then press each time will change to another different effect between the 20 kinds dynamic models as below:
|
NO. |
Model |
NO. |
Model |
NO. |
Model |
|
1 |
Seven color fade |
8 |
purple gradually faded |
15 |
Blue blasting flash |
|
2 |
Three color gradually faded |
9 |
Blue gradually faded |
16 |
purple blasting flash |
|
3 |
Seven color gradually faded |
10 |
Three color jump |
17 |
Yellow blasting flash |
|
4 |
White gradually faded |
11 |
Three color fade |
18 |
White flash blasting |
|
5 |
Green gradually faded |
12 |
Three color flash |
19 |
Three color burst flashing |
|
6 |
Yellow gradually faded |
13 |
Red blasting flash |
20 |
Auto cycle |
|
7 |
Red gradually faded |
14 |
Green flash blasting |
|
|
Color key：Press first time to Switch to the Static mode,then press each time will be in different model,(total 20 models),the Static mode are as the following:
|
NO. |
Model |
NO. |
Model |
NO. |
Model |
|
1 |
Red |
8 |
cyan |
15 |
brown |
|
2 |
Orange |
9 |
Light blue |
16 |
white |
|
3 |
deep yellow |
10 |
sky blue |
17 |
Milk-white |
|
4 |
Yellow |
11 |
blue |
18 |
Pink-white |
|
5 |
Light yellow |
12 |
Dark blue |
19 |
Yellow-white |
|
6 |
green |
13 |
bluish violet |
20 |
blue-white |
|
7 |
Light green |
14 |
purple |
|
|
Speed/Bright key：this is the adjustable key. Press this key can adjust the light’s brightness(total 5 level) when in Static mode;Press this key to adjust the speed(total 5 level)when in dynamic models.Press this key last about 3 seconds to turn OFF/ON this controller.
Typical Applications:
cautions
1、This products Input voltage is DC5-24V,other input voltage are not allowed.
2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers
3、Overload are prohibited.
