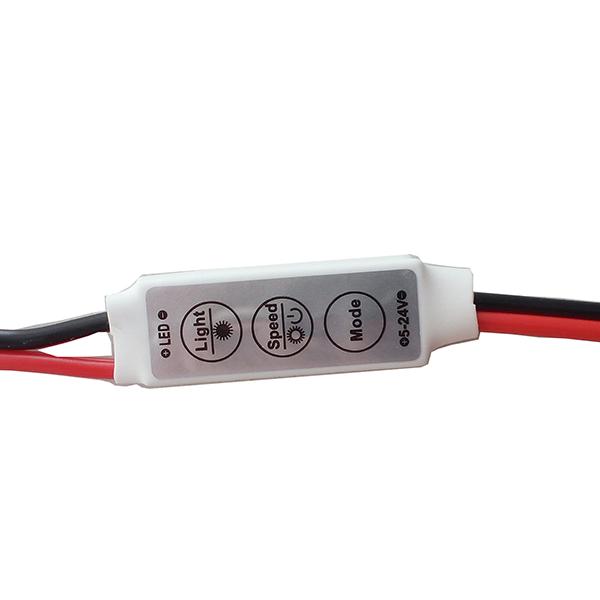

Product Specifications

Model number：MINI-01

Products name：Mini 3 keys Single color controller

Product Description:

Mini 3 keys Single color controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can adjust the lights brightness according to their actual requirement.

This controller is with 8 kinds of monochrome dynamic model,including flash blasting,  breathing, getting brighter and darker , strobe, flicker and other models.With wide range of speed level( total have 10 level of speed). At the same time, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.

Technical Parameters:

   ● Working temperature：-20-60℃

   ● Input voltage：DC5~24V

   ● Output：1 circuit

   ● Connection mode：Common anode

● controller size：L40.0×W12.0×H5mm

● Net weight：11g

● Gross weight：11g

● Static power consumption：<0.5W

● Output current：<6A(each circuit)

● Output power： 12V < 72W

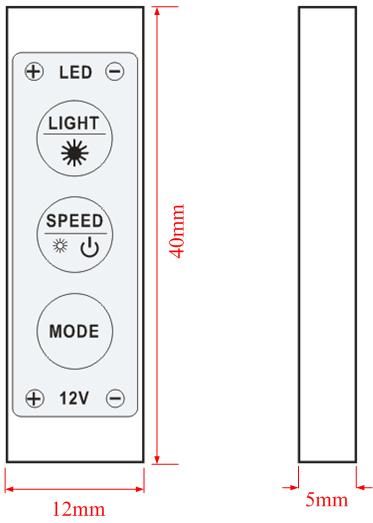

External dimension:

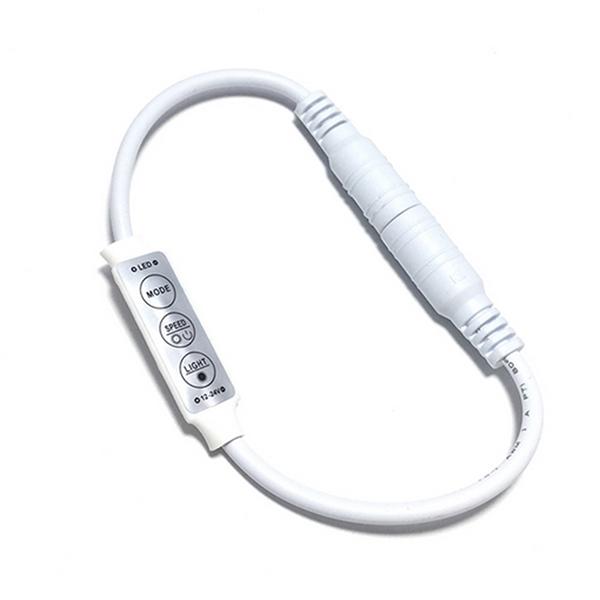

Connection description:

Power input :5.5x2.1mm female DC connector        Load output:: 5.5x2.1mm male DC plug

Direction for use:

Powered the controller, it will recover to the same models as the same model before cut out the power last time . This controller have 3keys in total, their functions are as follows:

Mode button: the first time to press this key can turn to the dynamic models,then press this key can choose the following dynamic models ,their sequence are as below:

Speed button：In dynamic mode, press this key to adjust the changing speed(total is 10 level of speed);In Static mode, each time you press this button, the brightness would reduce one level (total 10 brightness),press this button last for morn than one second,this mini controller will be turn off, then press  random of the key can be turn on the controller again and recover to the same model as that before turn off.

Light button：press this button to switch into the static models,press this button for one time ,the brightness will be increase one level,press this key last more than 1 second, can increase the brightness quickly..

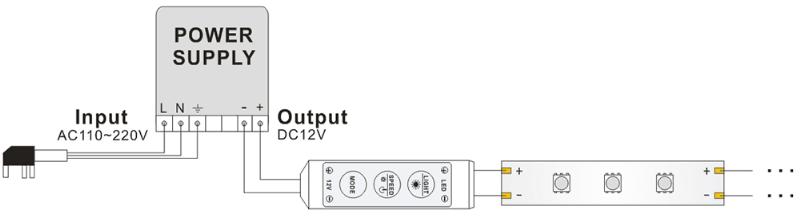

Typical Applications:

cautions

1、This products Input voltage is DC12V,other input voltage are not allowed.

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3、Overload are prohibited.
