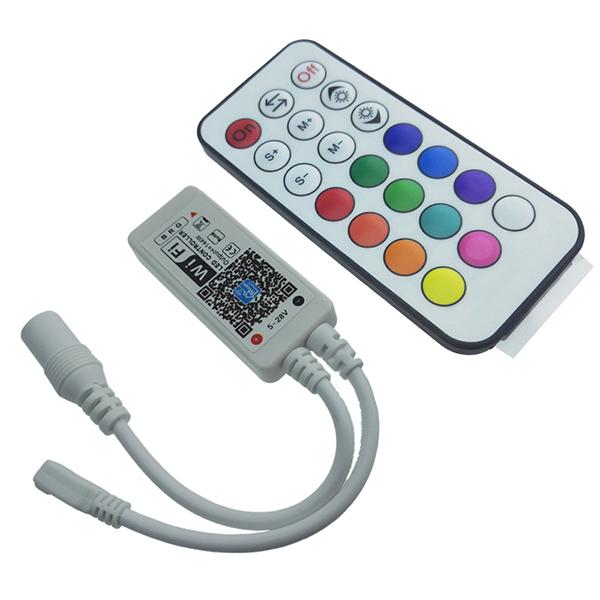

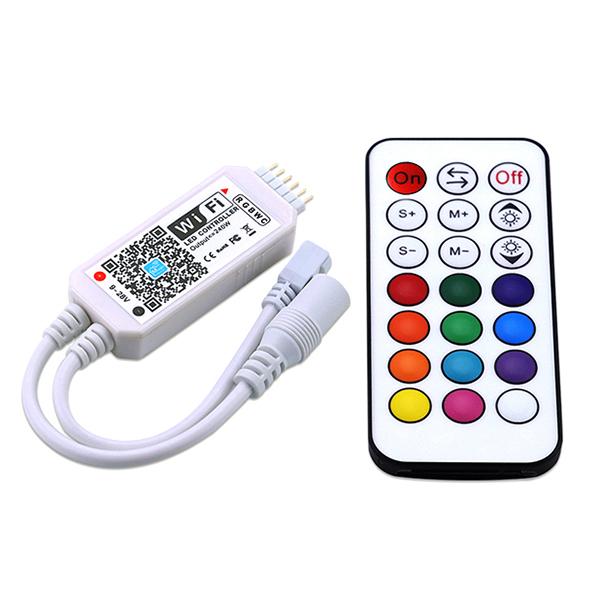

Product Name：Mini RF 21 Keys WIFI Controller

Product Description:

This mini RF21 keys WIFI controller is a new way to use your Smart lighting system。As a member of the series, it is manipulated by connect to wireless router. This is designed to make using your smart lighting system much easier and more convenient. No matter where you are, when it is, you can always control them. Functions like 16 million colors, 20 dynamic modes, music, and picture color recognize.

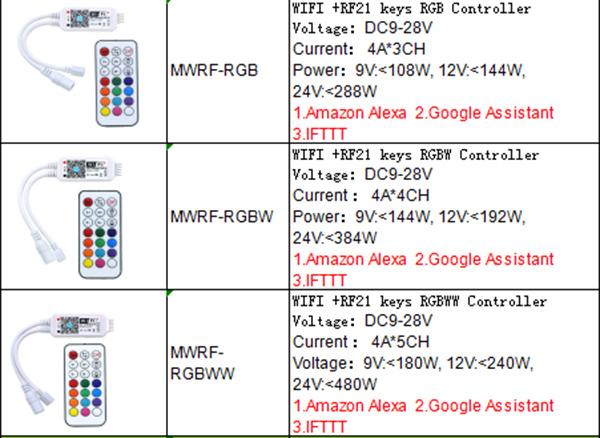

Technical Parameters:

   ● Working temperature：-20-60℃

   ● Input voltage：DC9-28V

   ● Output：3/4/5 circuit

   ● Connection mode：Common anode

● controller size：53mm*24mm*11mm

● remote size：L85×W52×H7mm

● Net weight：45g

● Gross weight：50g

● Static power consumption：<0.5W

● Output current：<4A(each circuit)

● Output power： 12V:<144W, 24V:<288W（3 circuit）

   Output power： 12V:<192W, 24V:<384W（4 circuit）

   Output power： 12V:<240W, 24V:<480W（5 circuit）

Direction for use:

● Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

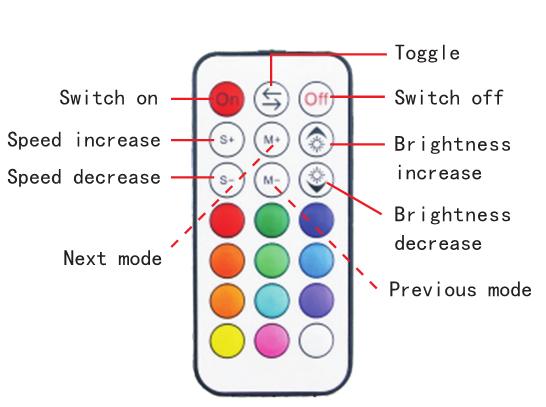

● The key functions are as below:
