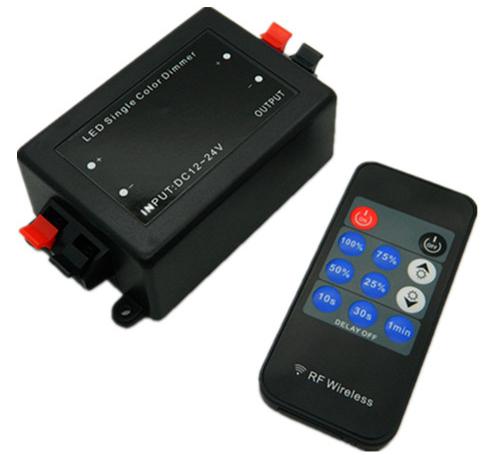

Product Specifications
Model number：RFT2
Products name：RF 11 Keys led dimmer(Delay Off function)
Product Description:
This 11 keys Single color led dimmer adopt the RF wireless remote control,can adjust brightness infinitely to change the brightness. User could adjust the light to the appropriate lighting brightness in accordance with the 25%,50%,75%,100% brightness hot keys easily..what’s more, its with the 10 Seconds/30 second/1 minute delay off function,this can realize more humanized to used.
Technical Parameters:
● Working temperature：-20-60℃
● Supply voltage：DC5V,12V~24V optional
● Output：1 channel
● Connection mode：Common anode
● Controller size：L115×W56×H34mm
● Package size：L120xW84xH45mm
● Net weight：80g
● Gross weight：108g
● Static power consumption：<1W
● Output current：<8A
● Output power：5V:<40W；12V:< 96W；24V:<192W
External Dimension:

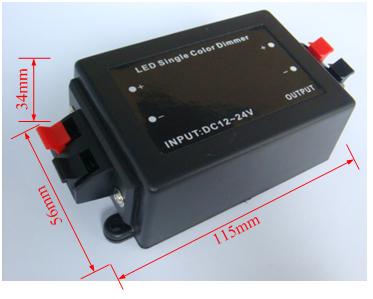

(Controller size)

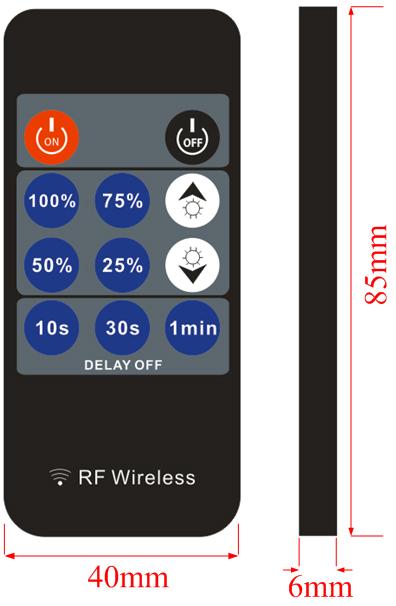

(Remote control size)
Interface Specifications:
Power input interface:
Adopt red and black clips for interface.
Load output interface:
Adopt red and black clips for output interface.
Direction for use:
● Connect the load wire at first, following to connected the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

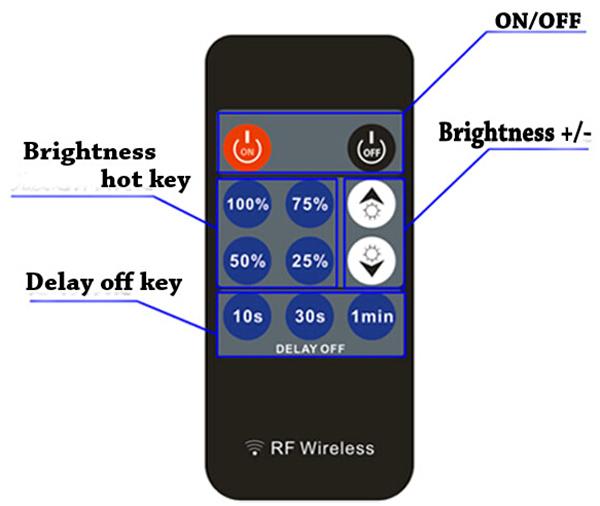

● Adopt wireless RF 11 Keys remote control, the key function as follows:
|
Symbol |
Key Name |
Key Instruction |
|
|
ON/OFF |
Turn on or off the controller output at any state. |
|
|
Brightness ± |
When the controller is on, press these keys to increase/decrease the brightness of the output load. |
|
|
Brightness hot keys |
When the controller is on, to choose the correspond 100%、75%、50% or 25% brightness by pressing these four keys. |
|
|
Delay OFF Key |
When the controller is on,to press these key, the light output will be flash (off-on ) for one time ,and it will turn off in 10seconds ,30seconds or 1 minute automatically. |
● Match code function Instruction: Every dimmer is already match code with the unique remote(the ID in the remote and the dimmer are the same),if the user want to match code again, then just need to press the 25% brightness hot key
for one times within 3 seconds after powered the dimmer.
● Beside,one dimmer can be match code with two remote(same ID) at the same time,user can used one of these two remote to controlled the dimmer.If one remote match code with many controller,than can realize one remote to controlled many dimmers.

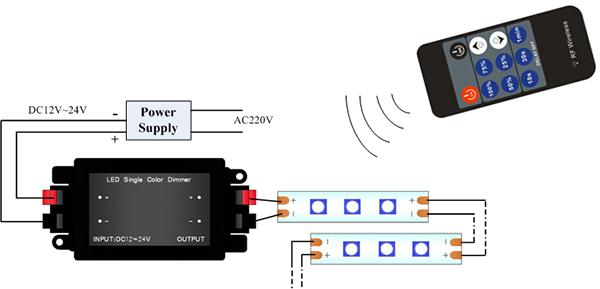

Typical Applications:
Cautions
1、This products Input voltage is DC12V,other input voltage are not allowed.
2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
3、Overload are prohibited.
