Product Specifications

Model number：T2 (White color)

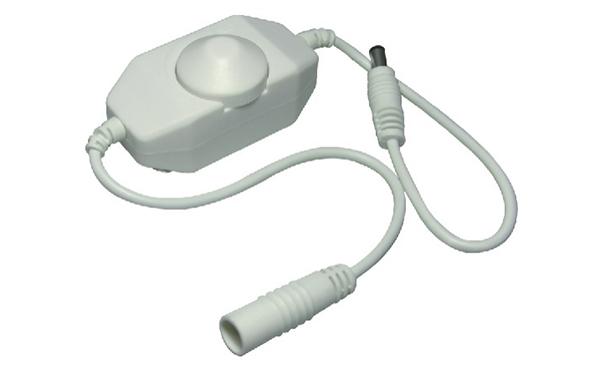

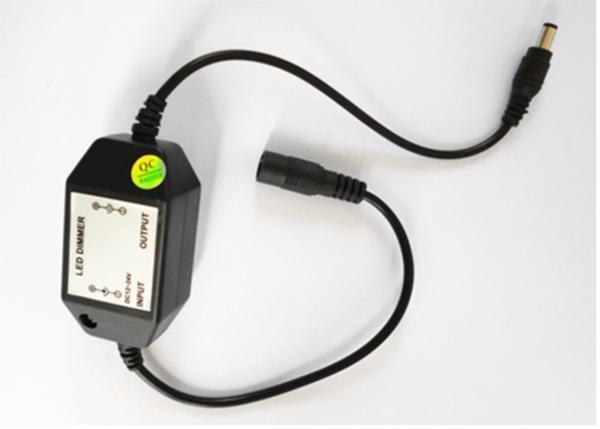

Products name：Inline LED dimmer

Product Description

 Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.

Technical Parameters

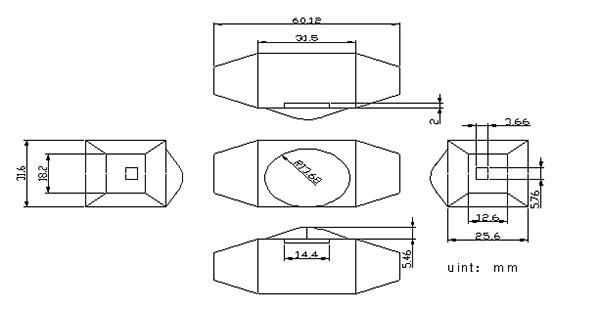

External Dimension

Interface Specifications

 Power input interface:                                  Load output interface:

  DC female connector :5.5x2.1mm                              DC male connector :5.5x2.1mm

Direction for use

● Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；

2. Adopt rotary button, its function as follows:

Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.

Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.

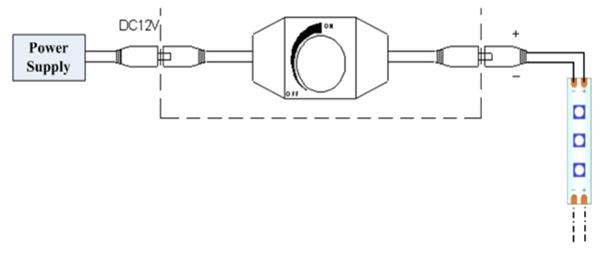

Typical Applications:

Cautions

1、This products Input voltage is DC12V,other input voltage are not allowed.

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3、Overload are prohibited.
