Product Specifications

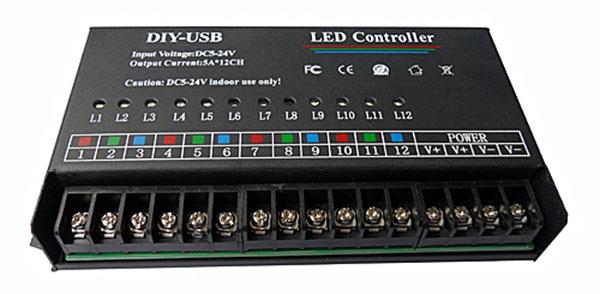

720W12V-M12Q-USB programmable LED Controller

Technical Parameters

● working temperature: -20-60 ℃

   ● supply voltage: 5V -24V

● output::12 channels

● connection mode: common anode

● external dimension: L166ΧW83ΧH37mm

● packing size: L180 Χ W93 Χ H40 mm

● net weight: 325g

● static power: <5W

● output current: <5A( each channel )

● output power: 12V<720W,24V<1440W

Main feature

1、One can control 12 roads monochromatic LED light running back and forth, colorful 4 roads running.

2、DC5-24V wide working voltage, can control the exposure lamp, module, lamp strip.

3、12 outputs, each output current up to 5A, support monochrome exposed lamp、 module 3000PCS.

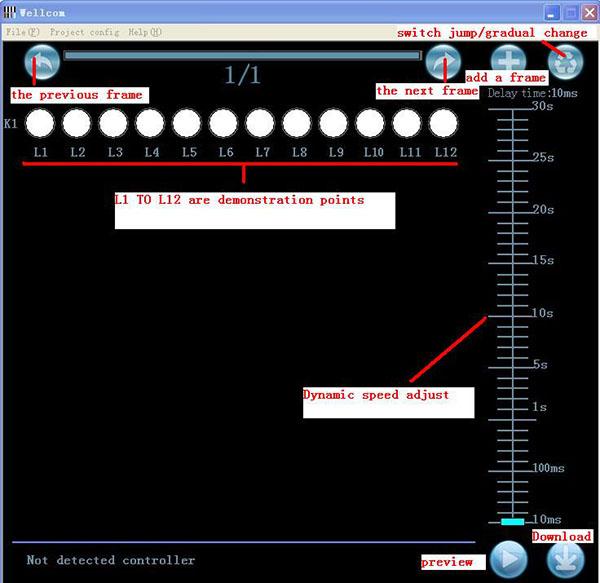

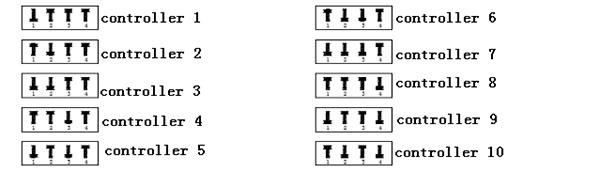

4、Multiple controller can cascade synchronization, it can control 120 roads, the effect can modify, download via USB, simple and convenient operation, strong randomness.

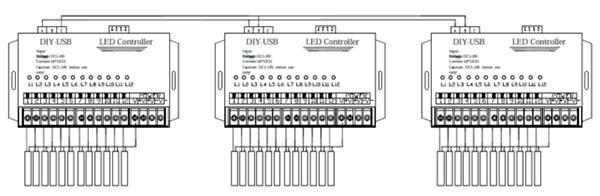

Mode of connection
