Product Specifications

Model ：HC03

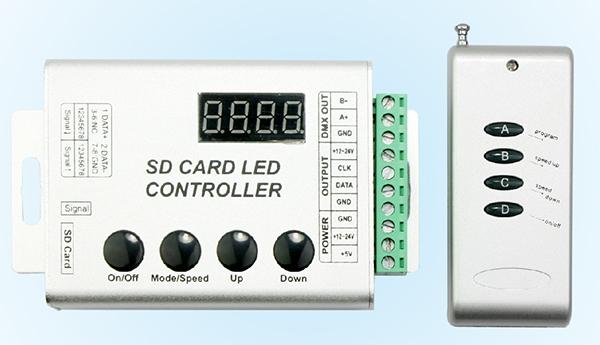

Name：SD Card Aluminum Shell Magic Color Controller

Product Description

SD card aluminum shell magical color controller is suitable for UCS1903, UCS6803 (TM1804,TM1809, TM2801 etc.) output applications to drive LED directly , and can be widely applied to the light box advertising, stage sets, home decoration; It has many advantages such as low price, easy connection and simplicity to use; It has a memory function; You can select mode, adjust brightness and various dynamic changes in lighting effects through the radio frequency remoter. In addition, we can compile kinds of customer requested change effect to the SD card by software, to realize user-defined dynamic change mode. At the same time it can synchronously control more controllers, continuously expand the output channels, in order to achieve more dimming or various program synchronization change effect.

It has a TF card with computer software, simple effect files and Electronic file specification. Please kindly check.

Product Description

   ● Working temperature：-20-60℃

   ● Supply voltage：DC5V, 12V~24V available

   ● Current：<60mA

● Controller dimension：L122×W71×H24mm

● Remoter dimension：L90×W36×H15mm

● Packing size：L135×W80×H55mm

● Net weight：200g

● Effects model：123

● Maximum control points：2048points

● Available IC Model：TM1803,TM1804,TM1809,UCS1903 TM1812,WS2811,LPD6803,LPD8806,SM16716 etc.
