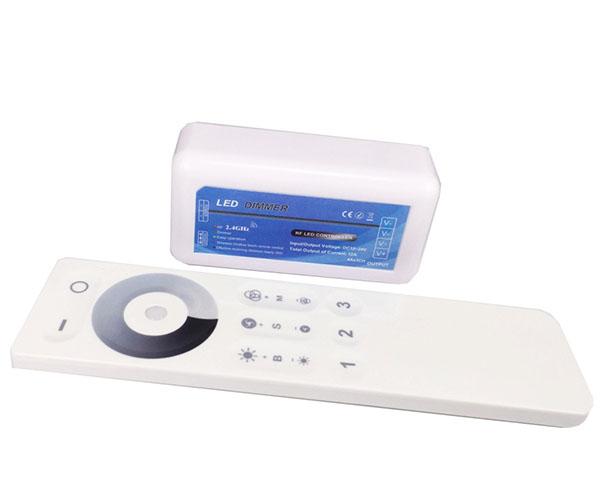

DST-01 2.4G 3 Group LED Dimmer

DST-01 2.4G 3 Group LED Dimmer

  • Send Inquiry
  • Chat Now
  • Product Specifications


    Model number:DST-01


    Products name:2.4G 3 Zone Touch Remote Single Color LED Controller



    Product Description


    This 2.4G 3 Zone Touch Remote  LED Controller is human touch type and key control type universal single color LED

    strip controller.User can adjust brightness infinitely according to the their preference even over a long distance. 2.4G RF

    Control technology gets more stable control effect and higher anti-interference capacity. Beside, It has Multi-group

    control function, A remote control can control the function of multiple controllers seperately or together.


    Technical Parameters


    ● Working temperature-20~55


    ● Supply voltageDC12V~24V


    ● Output3 Channel


    ● Connection modeCommon anode

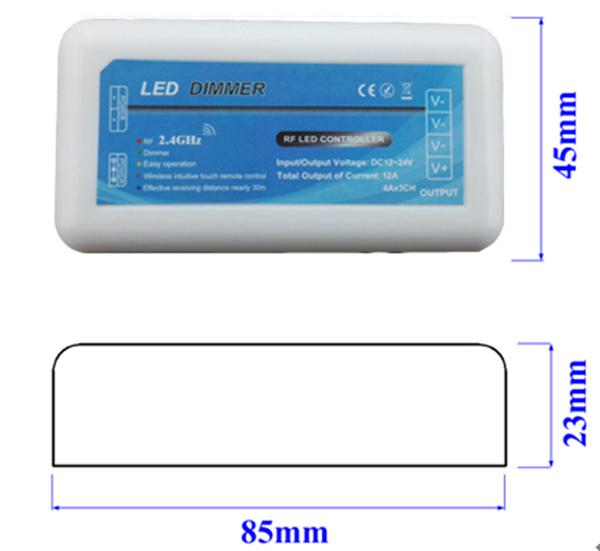

    ● Controller sizeL85×W45×H23mm

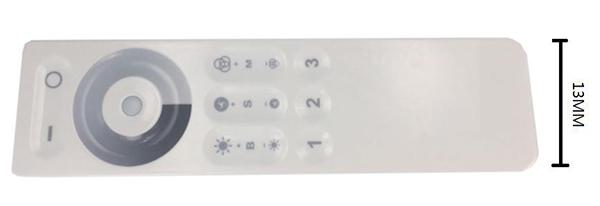

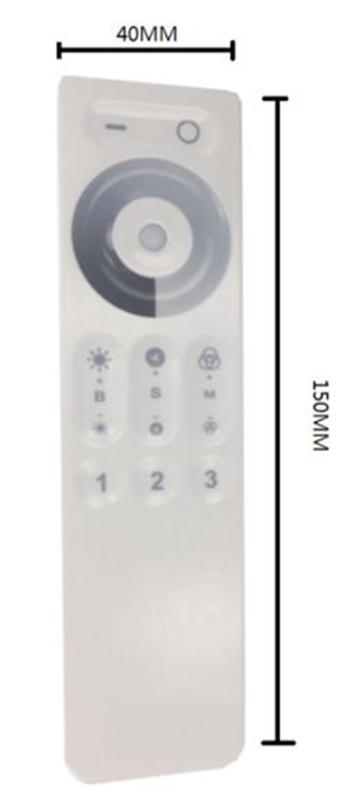

    ● Remote sizeL150×W40×H13mm


    ● Static power consumption<1W


    ● Output current<4A/CH


     Output power12V:<144W24V:<288W


    External dimension


    (Receiver size)

    (Remote Size)


    Connection description


    Power input interface:



    Power 1: Adopt wire plug-in and screwing terminal power input


    Power 2:Adopt the DC female Connector.


    Load output interface:



    Adopt wire plug-in and screwing terminal output


    Direction for use:

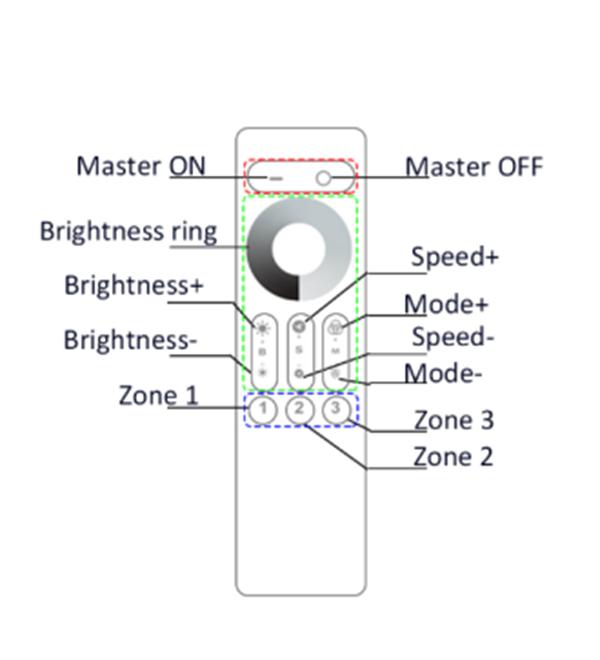

    RemoteFunction introduction


    The  parameters are as below table:





    Supply  Voltage


    2*AAA batteries

    Transmission Frequency


    Control Mode


    Transmission Power


    Static powerconsumption


    Remote distance


    External dimension



    ● Remote Function introduction


    1、 Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote


     can control it across obstacles.


    2、 In the open area remote control distance is about 30 meters.


    3、 Adopt touch control remote, slightly touch the color wheel can switch the light color easily and smoothly


    Operation method:


    1Connect the load wire at first, following by the power wire; Please make sure no short circuit between connecting


    wire before you turn on the power;


    2Only the ON button is effective in the OFF station, press the power button for the first time then controller will enter to


    the last mode before turn off the controller last time (memory off function).


    3Match code and clean code Instruction


    For a new combination, the remote have to match code with the receiver then it can be used normally. Before match

    code, switch on the power to check if the LED Controller, power supply and led light are connected correctly.


    Match code: Switch off the power, then Switch on again (within 8 seconds)longpress the “Group X(X=1,2,3)”Button for 2

     seconds. the output led light will be quickly flash for 3 times, this means the remote is matched code with this receiver

    successfully, they can be used normally.


    For example: there are A and B controller. Firstly, Switch on the power for A(within 8 seconds)long press “Group


    1”button for 1 second, the output led light will be quickly flash. “Group 1” can control A controller.


    Secondly, Switch on power for B(within 5 seconds)long press “Group2”button for 2 seconds, the output led light will be


    quickly flash, “Group 2” can control B controller


    When long press Master OFF button, Both A and B will be turned off, then short press Master ON button, Both A and B


    will be turned on, A and B can be controlled in the same time. Well,if A is turned on and B is turned off , short press


    Master ON button, the A will be turned off, B will be turned ON

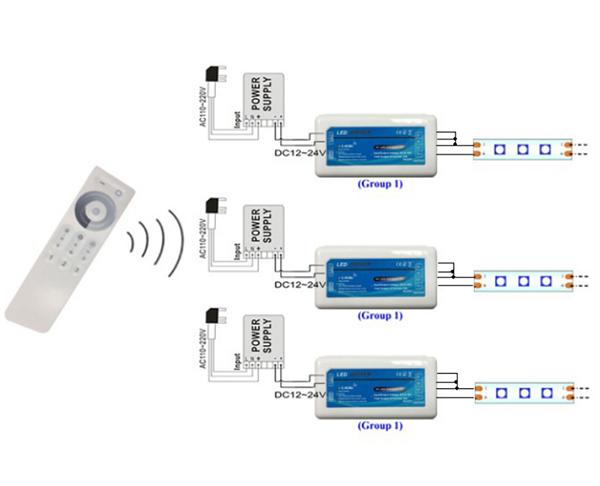

    Remark:A remote control can operate 3 groups of controllers at the same time. each group of controllers can be

    composed of many controllers, such as 30 controller divided the 3 groups, then, each group control can remote 10

    controllers, to achieve synchronously adjustable brightness effect.


    Clean code:


    If need change the Group combination, the link between remote and receiver can be cleaned. Then rebuild the link as



    Code clean method


    Switch on power for controller(within 8 seconds)long ress “GROUP X(X=1,2,3)”button for 2 seconds, the related led light

     will be quickly flash for 9 times, that means this group has been cleaned code.


    Remark: Our factory default for set package is Group 1 linked to controller. User can build link according actual

    demand. One remote can be linked with countless controller, one controller only can be linked with 2 remotes.


    4Press ON button to start, then press mode button    can switch the modes as following






    Static Color

    Brightness and speed are adjustable.


    Strobe Flash


    Fade In And Fade Out


    Blasting Flash


    Typical Application





    1, This products Input voltage is DC12-24V,other input voltage are not allowed.


    2, Lead wire should be connected correctly,according to the wire color and the connecting diagram offers


    3, Overload are prohibited.


    4, In order to promote the touch sensitive of the color wheel, please don’t touching the touch color wheel when installing


    the battery to the remote, if sensitive are low, please remove the battery and re-install it again.


    5, Please do not used the controller around a wide range of mental area or do not used nearby strong electromagnetic


    wave area, otherwise,  it will seriously affect the remote distance.
