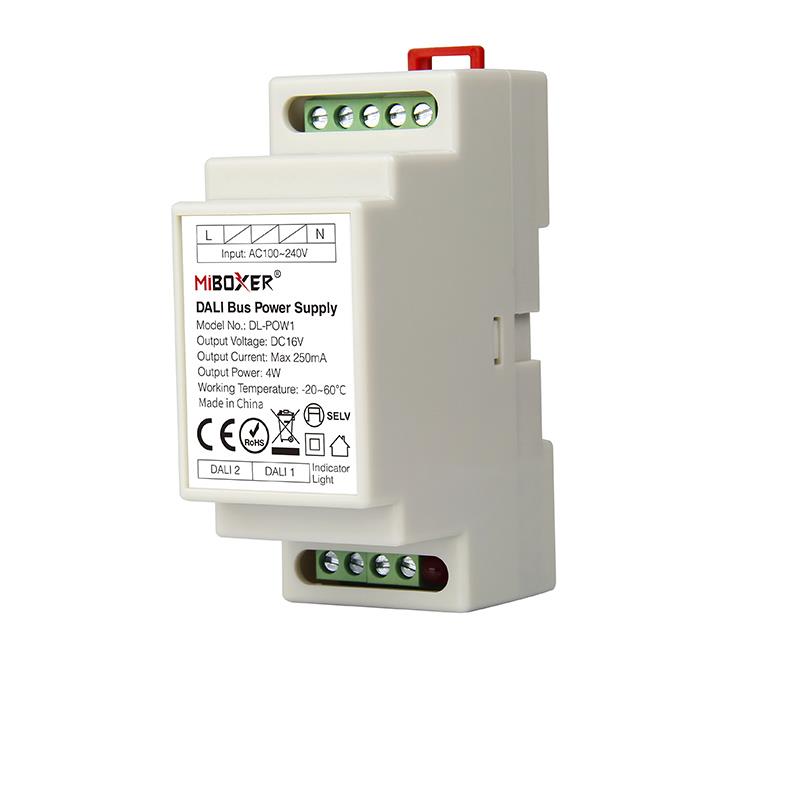

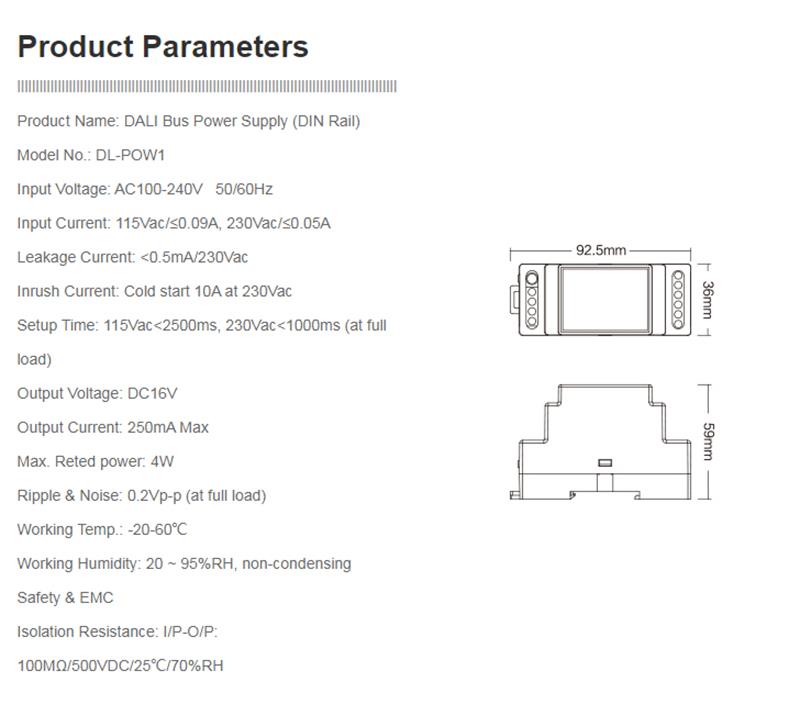

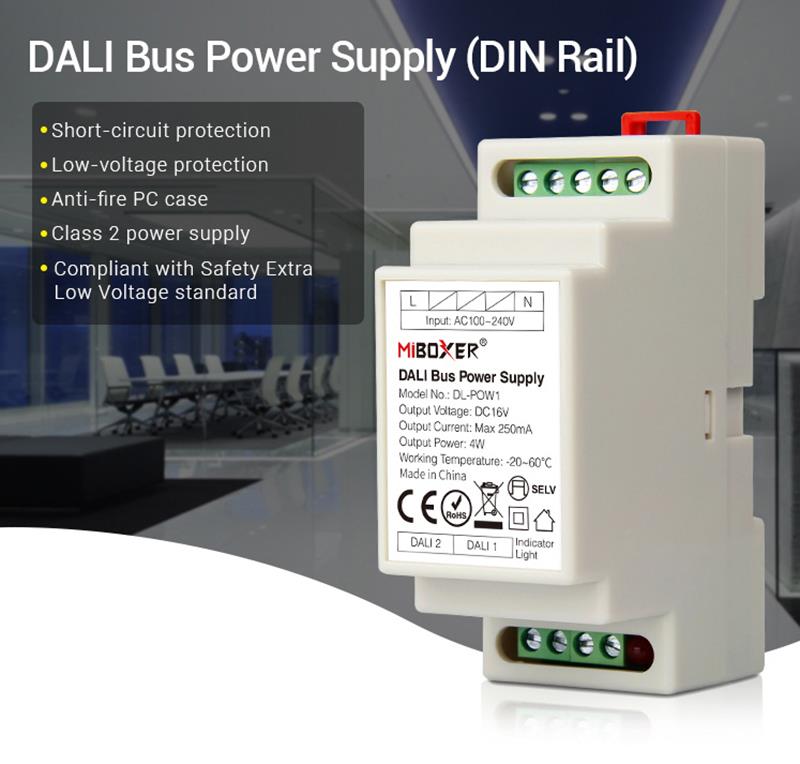

Product Name: DALI Bus Power Supply (DIN Rail)

Model No.: DL-POW1

Input Voltage: AC100-240V   50/60Hz

Input Current: 115Vac/≤0.09A, 230Vac/≤0.05A

Leakage Current: <0.5mA/230Vac

Inrush Current: Cold start 10A at 230Vac

Setup Time: 115Vac<2500ms, 230Vac<1000ms (at full load)

Output Voltage: DC16V

Output Current: 250mA Max

Max. Reted power: 4W

Ripple & Noise: 0.2Vp-p (at full load)

Working Temp.: -20-60℃

Working Humidity: 20 ~ 95%RH, non-condensing

Safety & EMC

Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH
