Product Specification

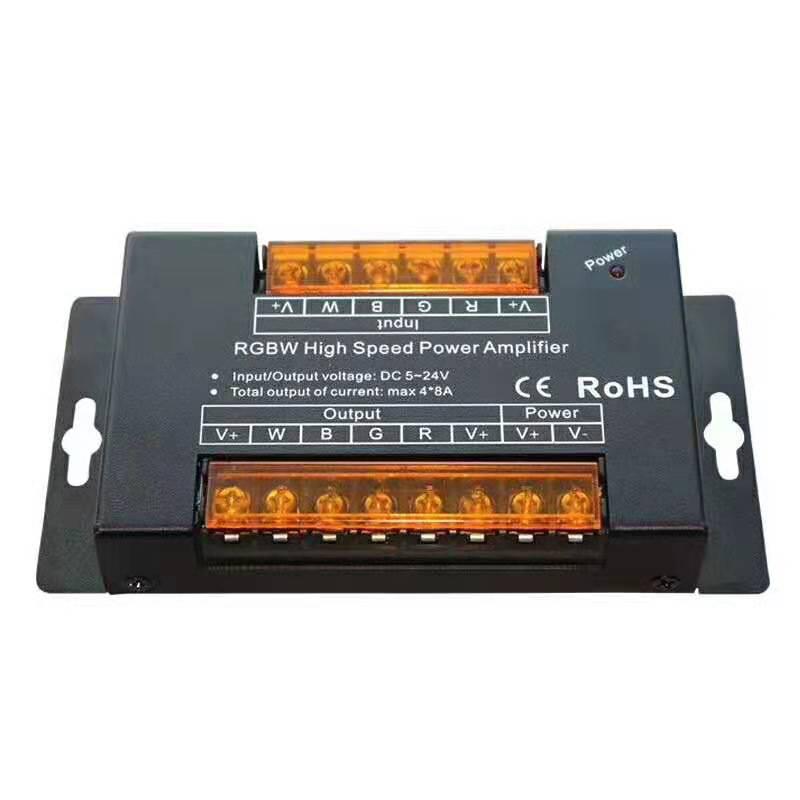

Name: High Speed Large Current Power Amplifier

Model: AMF-T4

Summarization

    High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.

Technical parameters

   Working temperature: -20-60 ℃

Working voltage: DC5V-24V

Signal voltage: DC5V-24V

Input signal: PWM dimming signal

Dimming range: 0.1%-100%

Net weight: 270g

Gross weight: 310g

External dimension: L147mm*W75mm*H25mm

Packing size: L152* W80* H30mm

    Connect terminal: screw connect mode, terminal caliber 7mm

Connect mode: common anode

Output current: <32A

Output power: 5V:<160W, 24V:<768W

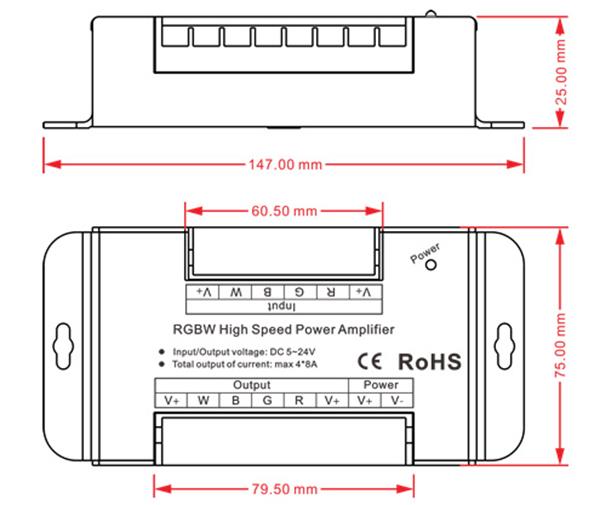

External Dimension:

Interface instruction:

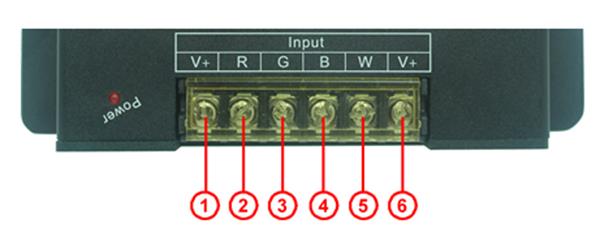

RGBW signal control port:

     1: Common anode public pole

     2: R channel input signal cathode

     3: G channel input signal cathode

     4: B channel input signal cathode

     5: W channel input signal cathode

     6: Common anode public pole

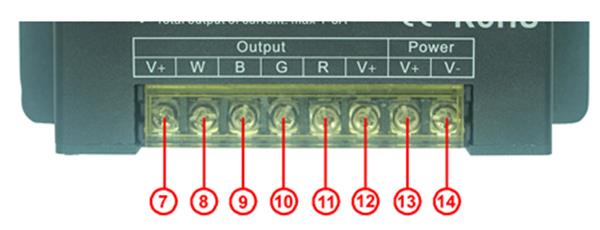

Power and load output port:

7: Load output common anode public pole

8:W channel load output cathode

9:B channel load output cathode

     10:G channel load output cathode

     11: R channel load output cathode

     12: Load output common anode public pole

     13: Power supply input voltage anode

     14: Power supply input voltage cathode

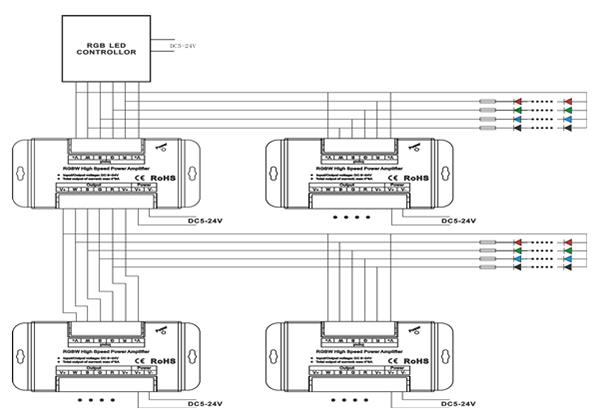

Technical Application
