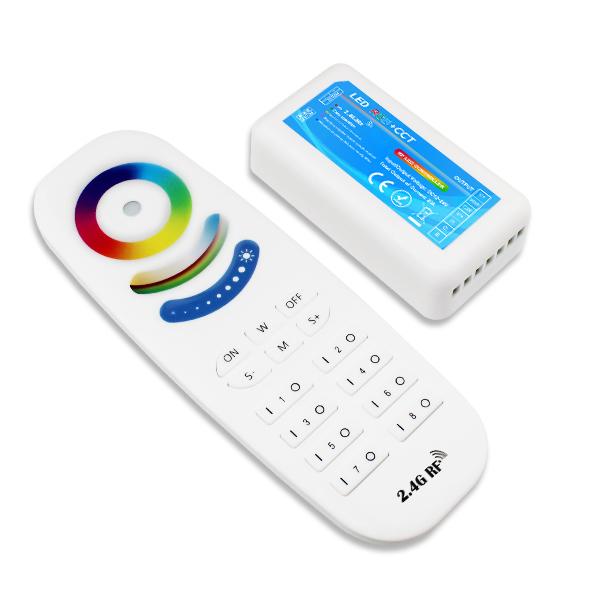

Product Description
The 2.4G 8 zone RGB+CCT remote control is a universal body touch controller, which adopts the most advanced PWM (Pulse Width Modulation) control technology; it can control all kinds of DC12V-24V LED lighting products, for example: LED module, LED strips, LED light box, LED light source, etc. It is easy to connect and simple to use, with synchronous indicating light and power off memory function etc. Users can choose different kinds of dynamic and color models, adjust brightness, color temperature, speed, etc. Models include flash effect, strobe effect, fade effect and so on.
Technical Parameters
● Working temperature:-20~55℃
● Supply voltage:DC12V~24V
● Output:5 Channel
● Connection mode:Common anode
● Controller size:L85×W45×H23mm
● Remote size:L157×W53×H18mm
● Static power consumption:<1W
● Output current:<4A/CH
● Output power:12V:<240W;24V:<480W
