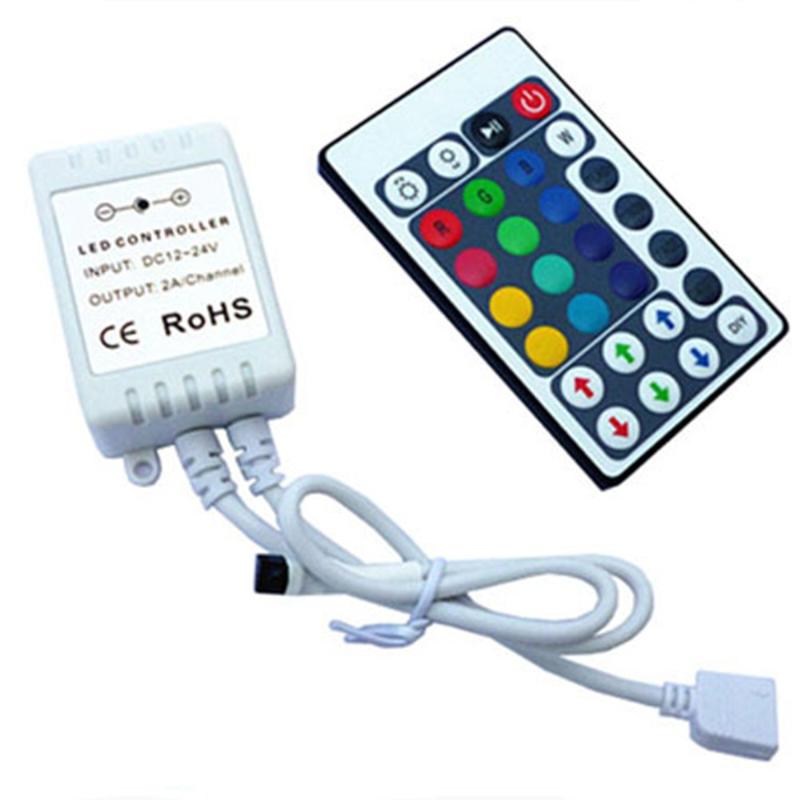

High quality Wireless IR 28keys RGB LED Controller by 28keys remote  DC12V 6A 72W  for LED LIGHT STRIP

28-key infrared controller adopts the advanced micro control unit, it is used for controlling all kinds of lamp whose source of light is LED. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.

Specifications:

Supply Voltage：DC12V~24V
Output：3 CMOS Open drain Output
Controller's dimension：61*35*22mm
Static power consumption ：<1W

Output Current：6A(3CH*2A)

Output Power:12V:<72W,  24V:<144W

The cables sequence is +RGB, or +GRB, or BRG or others,pls mark the cables sequence when you buy it.

Cautions:

1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.

2. Lead wire should be connected correctly according to grade that connecting diagram offers.

3. This product is not to overload;
