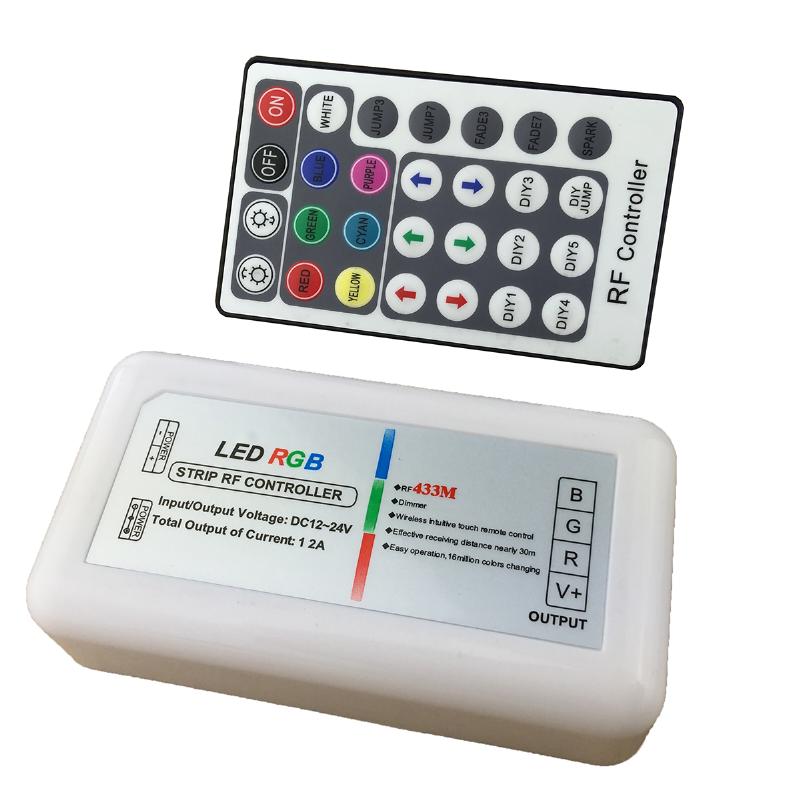

Plastic RF 28 Keys RGB controller adopted the advanced computer control chip.
Mainly used to adjust the brightness and color changing speed of RGB LED light source, such as point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on.
3 channels output.
Matched with a Radio Frequency wireless remote control, ensures long remote distance.
Easy to install.
It integrated with easy connection,simple manipulation and power off memory function.
Specifications:
Controller case material: Plastic
Working temperature: -20-60c
Supply voltage: DC12V ~ 24V
Output: 3 channels
Connecting mode: common anode
Static power consumption: <1W
Output current: <4A/ch
Output power: 12V: <144W, 24V: <288W
Standard color changes as follows:
Brightness/Speed+ Brightness/Speed- OFF ON
Static red Static green Static blue Static white
Static yellow Static cyan Static purple 3 color jump
Red brightness + Green brightness + Blue brightness + 7 color jump
Red brightness - Green brightness - Blue brightness - 3 color fade
DIY 1 DIY 2 DIY 3 7 color fade
DIY 4 DIY 5 DIY color jump fireworks effect model
