Product Specifications

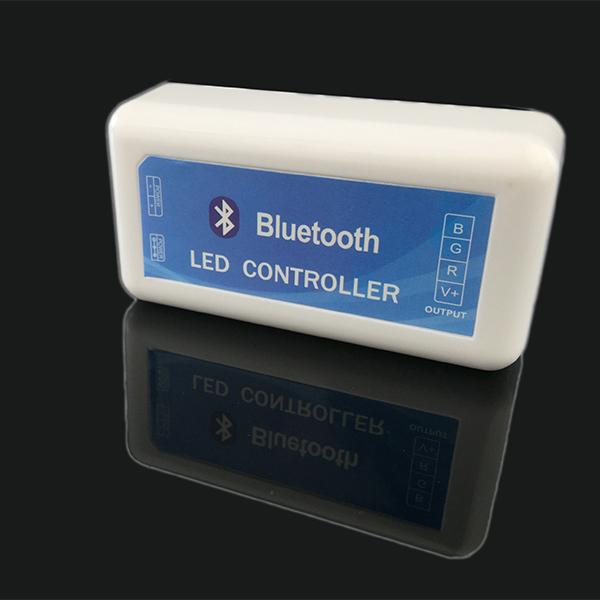

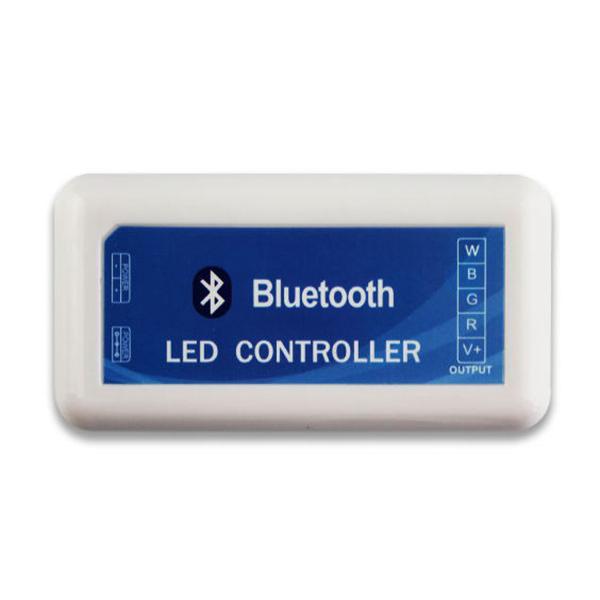

Model number：Plastic Bluetooth RGB / RGBW Controller

Product name：BHT-01

Product Description:

This Bluetooth RGBW / RGB Controller is a universal controller via Ios & Android device. Bluetooth 4.0 and the most advanced PWM (pulse width modulation) control technology have been adopted. 4 channels RGBW led lighting like Led strips light, LED module, LED light box can be suitable with it. Easy to install and use, memory function, indicate light show are the advantages of it.  Modes selection, brightness & speed adjustment and more are the nice functions. Dynamic mode like jump, fabe or stobe, do it as you wish.

Technical Parameters

Working temperature：-20~55℃

Supply voltage：DC12V

Output：4Channel /3 Channel

Connection mode：Common anode

Controller size：L62×W35×H22mm

Net weight：330g

Static power consumption：<1W

Output current：<6A/CH

Output power：5V:<120W; 12V:<288W; 24V:<576W (4 CH)

                         5V:<90W; 12V:<216W; 24V:<432W (3 CH)
