Product Specifications

Model number：DS03

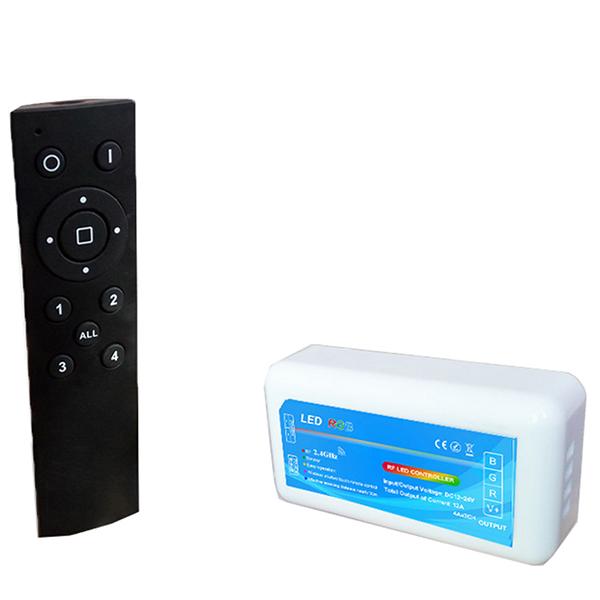

Product name：4 Zone 2.4G RGB controller

Product Description

This 4 zone 2.4G RF remote RGB led controller adopt the most advance PWM control technology, can control all kinds of 3 channel (common anode) LED lights. Such as LED module, led strip, led control box, led source, etc. This controller is with indicating light and power off memory function, next time to used it, will start with the model it save.  Easy connection and simple to used is the representative advantages of this controller. User can choose different changing mode, adjust the speed and brightness, turn on/off by the remote control according to their preference .

Technical Parameters

● Working temperature：-20~55℃

● Supply voltage：DC12V~24V

● Output：3 Channel

● Connection mode：Common anode

● Controller size：L85×W45×H23mm

● Remote size：L150×W38×H14mm

● Static power consumption：<1W

● Output current：<4A/CH

● Output power： 12V:< 144W；24V:<288W

External dimension

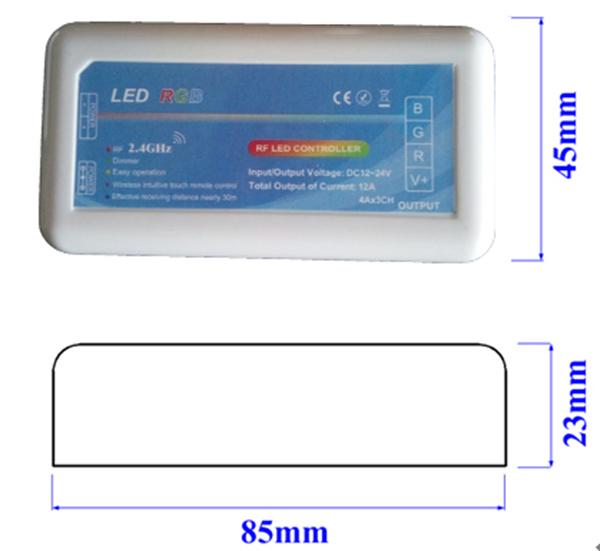

(Receiver size)

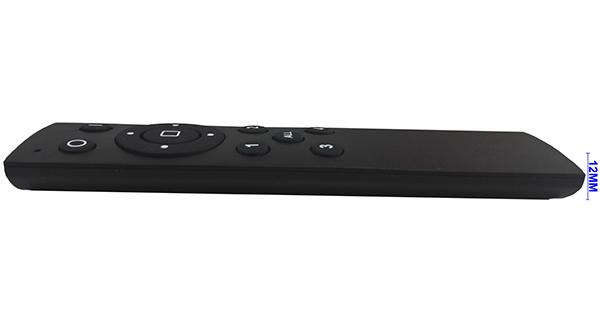

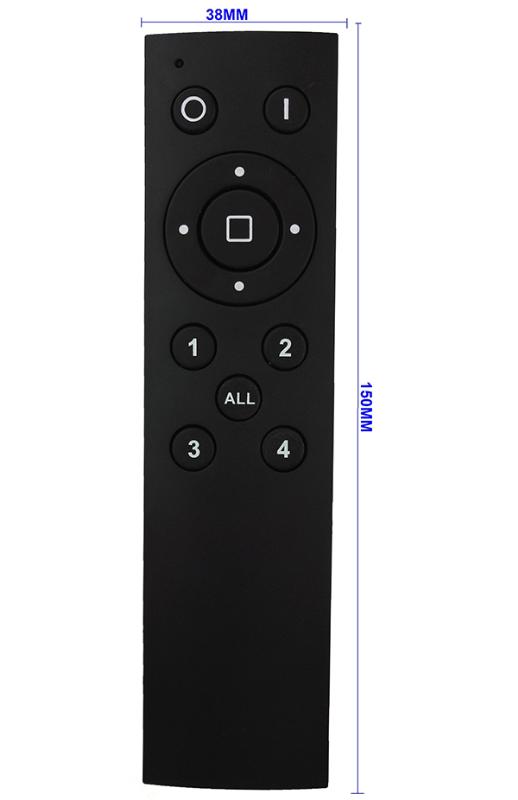

(Remote size)

Connection description:

Power input interface:

Power 1: Adopt male and female connector with screw.

Power 2:Adopt the DC female Connector.

Load output interface:

Adopt male and female connector with screw.

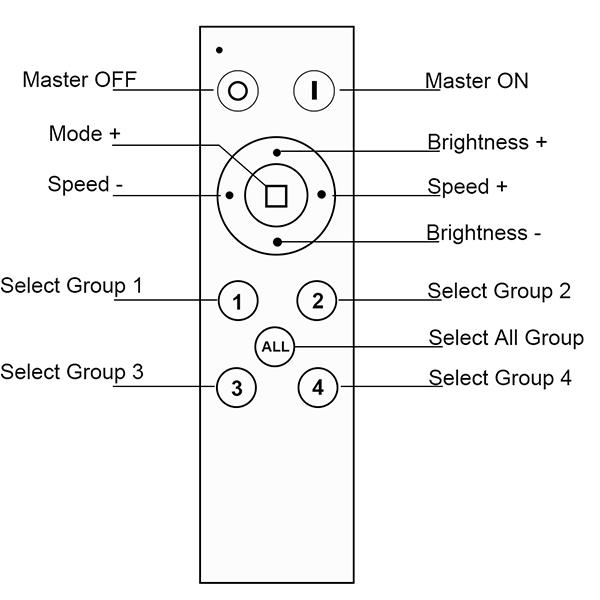

●Remote control function

The control parameter are as below table:

●Function introduction：

1、Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller and the RF remote can control it across obstacles.

2、Adopt the press key control remote, it can quickly adjust to the light’s brightness smoothly .

●Match code and clean code Instruction：

For a new combination, the remote must to match code with the receiver then it can be used normally. Before that, you must ensure the LED controller, power supply and LED light are connected correctly, then re-power it again.

Match code: Please press the “Group X(X=1,2,3,4) ON” Button for 2 seconds within 8 seconds when power the controller, then the output led light will flash for 3 times, this means the remote is match code with this receiver successfully, they can used normally.

Clean code: if want to change the light control group, can clean the code off. After cleaning code, the remote and receiver will be in the initial state. Operation method: Press the “Group X(X=1,2,3,4) OFF ” Button for 2 seconds within 8 seconds when power the controller, till the output light flash for 9 times, means clean code successfully.

●Programs as follows:

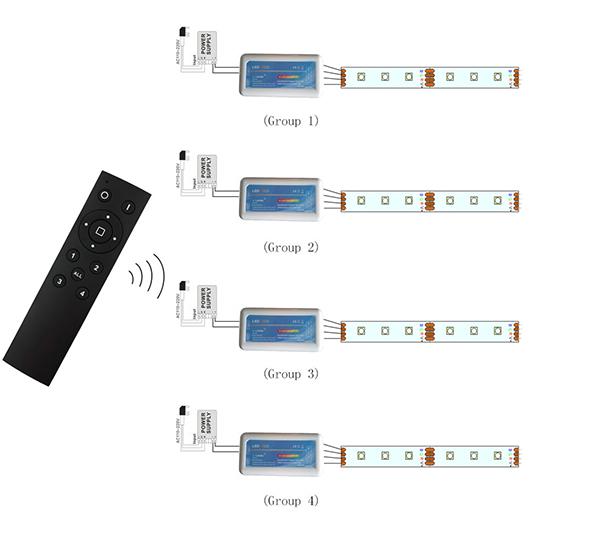

Typical Application

Cautions

1、This products Input voltage is DC12-24V,other input voltage are not allowed.

2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.

3、Overload are prohibited.
