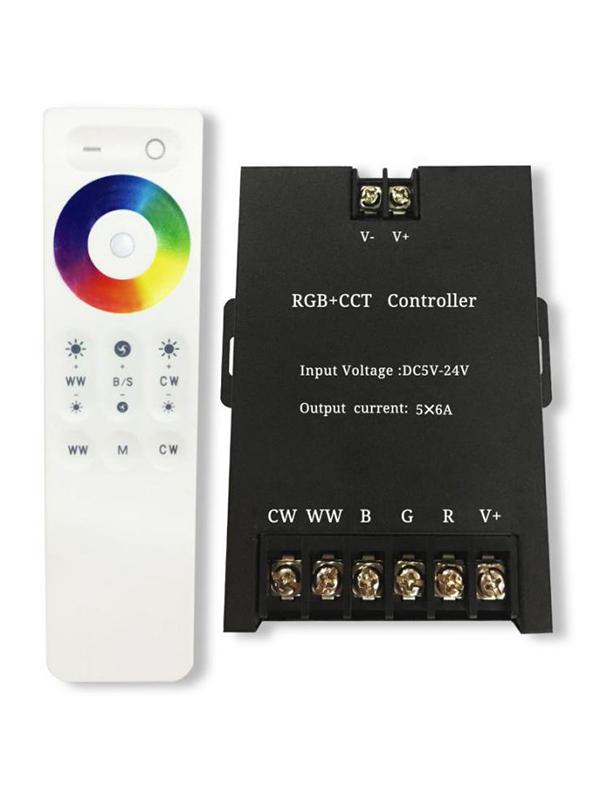

Product Specifications

Model：DST-05

Product name： RF2.4G Touch RGB+CCT Controller

Product Description

This 2.4G Touch Remote RGB+CCT controller is human touch type and key control type universal RGBWW controller.

 Adopting the most advance PWM control technology, can control all kinds of 5 channel (common anode) and 6 wires

 LED lights. Such as LED module, led strip, led control box, led source, etc. This controller is easy to connected with

 wires and very simple to use. It is with synchronous indicating light and power off memory function. User can choose

 different changing mode, adjust the speed and brightness, turn on/off by the remote controlling. User can get flash effect,

 strobe effect, fade effect etc according to their demand .

Technical Parameters

● Working temperature：-20~55℃

● Supply voltage：DC5~24V

● Output：5 Channel

● Connection mode：Common anode

● Controller size：L110.7×W75.1×H25.5mm

● Remote size：L150×W40×H13mm

● Static power consumption：<1W

● Output current：<6A/CH

 ● Output power：5V:<150W；12V:<360W；24V:<720W

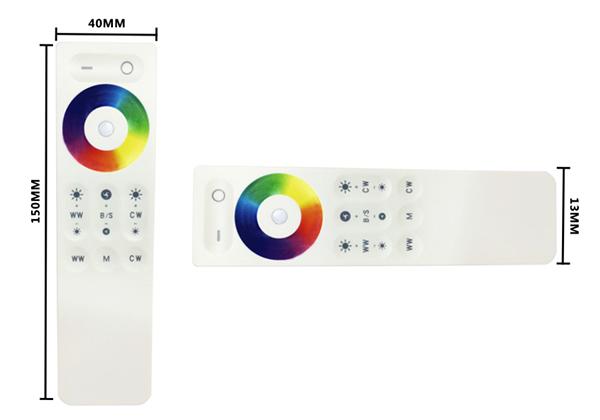

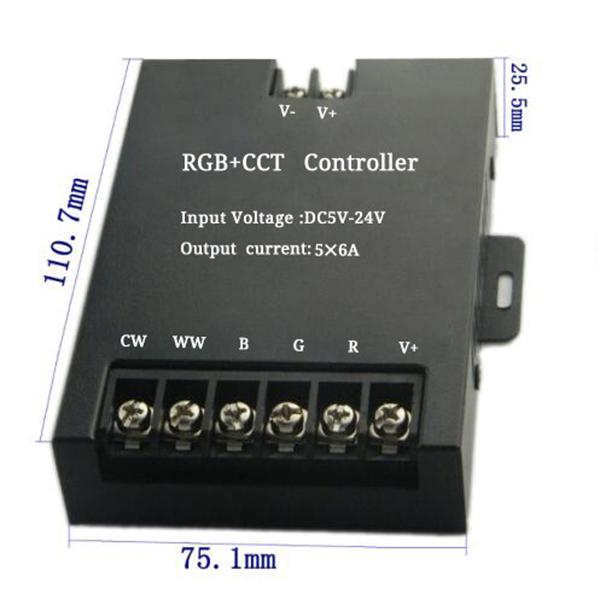

External dimension

controller

remote

Connection description:

Power input interface:

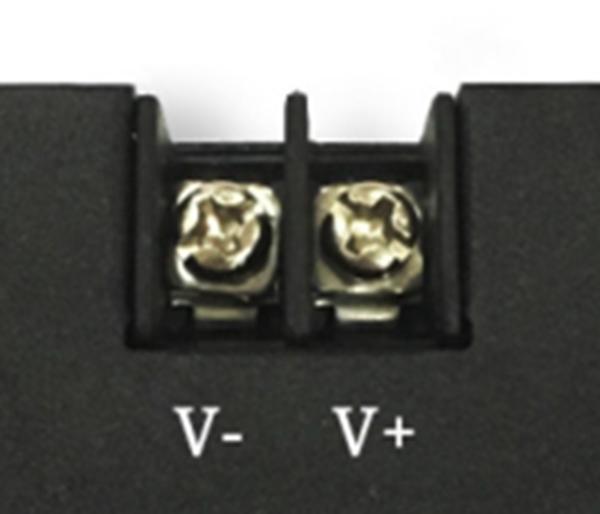

Adopt wire plug-in and screwing terminal power input

Load output interface:

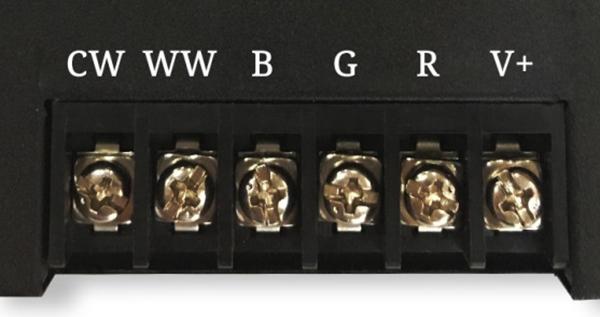

 Adopt wire plug-in and screwing terminal output

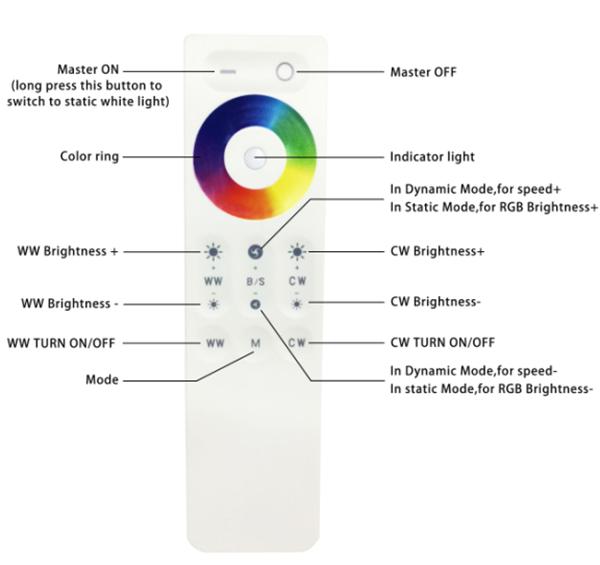

● Remote Function introduction

● Remote Function introduction：

1、Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller, and the RF remote

 can control it across obstacles.

2、In the open area remote control distance is about 30 meters.

3、Adopt touch control remote, slightly touch the color wheel can switch the light color easily and smoothly

● Operation method:

1、Connect the load wire at first, following by the power wire; Please make sure no short circuit between connecting wire

 before you turn on the power;

2、the WW and CW ON/OFF button is effective in the OFF station, press the power button for the first time then

 controller will enter to the last mode before turn off the controller last time (memory off function).

3、Press ON button to start, then press mode button  can switch the 25 modes as following：

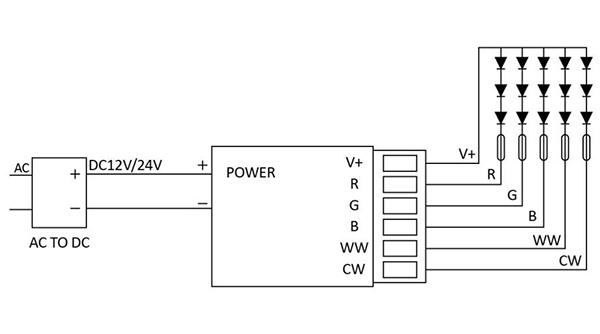

Typical Application

Cautions :

1, This products Input voltage is DC12-24V,other input voltage are not allowed.

2, Lead wire should be connected correctly, according to the wire color and the connecting diagram offers；

3, Overload are prohibited.
